Gaoxin Industrial Park, Guangming New Zone, Shenzhen w prowincji Guangdong, Chiny | Angelwang66@126.com |
Place of Origin: | Shenzhen,China |
Nazwa handlowa: | RAYTOP |
Orzecznictwo: | CE, RoHS, FCC |
Model Number: | ETL1200500-1 |
Minimum Order Quantity: | 2K |
---|---|
Cena: | Negotiable |

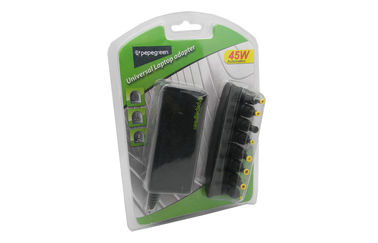

Packaging Details: | Color box or blister, 20 pieces per master carton. |
Delivery Time: | 15-20 work days. |
Payment Terms: | T/T, L/C |
Supply Ability: | 50000 Pcs monthly. |
High Light: | universal notebook power adapter,universal laptop power supply |
---|
Quick Detail:
Place of Origin: Shenzhen, China
Brand Name: Raytop
Usage: Notebook/Netbook
AC Input: 100-240V, 50/60Hz, 1.3Amp.
Input: AC100-240V, 1.8A max.
Output: DC9.5/12/16/18/19/20V
Power Cord:
AC Cable: 2x0.75mm2, or 3x0.75mm2 length: 1.2M
DC Cable: 18AWG, Copper, length: 1.2M
AC Plug: EU, UK, US, SAA, CCC
Condition: All new products, 100% burn-in test.
Product Type: Universal AC Adapter
Power:45W
Color: Black.
Specifications:
Size of 8 Tips
A1 | 4.8x1.7mm | 9.5V/3.5A |
A2 |
4.8x1.7mm |
12V/3.5A |
A3 | 6.5x4.4mm | 16V,2.5A |
A4 | 4.0X1.7mm | 19V/2.2A |
A5 | 5.5x1.7mm | 19V/2.2A |
A6 | 5.5x3.0mm | 19V/2.2A |
A7 | 5.5x2.5mm | 20V/2.2A |
A8 | 2.5x0.7mm | 19V/2.1A |
Datasheet:
Input |
Rated Input Voltage |
AC100~240V |
Input Voltage Range |
AC 90~264V |
|
Rated Frequency |
50/60 Hz |
|
Input Frequency Range |
47~63 Hz |
|
Input AC Current |
1.3A |
|
Inrush Current |
30A |
|
Output |
Rated Output Voltage |
DC 9.5~20V |
Output Voltage |
DC9.5/12/116/18/19/20V |
|
Rated Output Current |
2.2A |
|
Rated Power |
45W |
|
Ripple and Noise |
100mV p-p |
|
Standby Power Consumption |
0.3W |
|
Turn-on |
5s |
|
Hold-up |
20s |
|
Over Voltage Protection |
Yes |
|
Over Current Protection |
Yes |
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
Reliability |
Hi-pot |
3000Vac |
Insulation Resistance |
Input to output at 500Vdc |
|
Leakage Current |
5mA |
|
EMI Standards |
FCC Part 15B Class B |
|
RoHS Compliant |
Yes |
|
MTBF |
50,000 hours |
|
Burn-in |
40+/-5 ℃, full load, 4 hours |
|
Drop Test |
6 direction, each one time from height 1.0M |
|
Environmental |
Operating Temperature |
0~40℃ |
Operating Humidity |
10~80% |
|
Storage Temperature |
-20~65℃ |
|
Storage Humidity |
0~90% |
|
Safety Approvals |
CE, RoHS, FCC. |
|
Warranty |
2 Years |
|

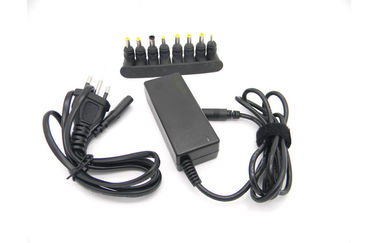

Contents | 1Adapter + 1AC Cable+1DC Cable +8 Connectors |
Applications:
External power supply, used to charge most top brand laptops/notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. It can also charge personal devices like smart phones, tablet, iPhone 4g/4s, iPhone 5g/5s, iPad, iPod and so on simultaneously when using your laptops.
Competitive Advantage:
-Open private model w/o extra cost for you;
-0.3% free backup of order quantity;
-Direct factory price without middle man.
-High performance-to-price ratio;
-Perfect after-sale service
