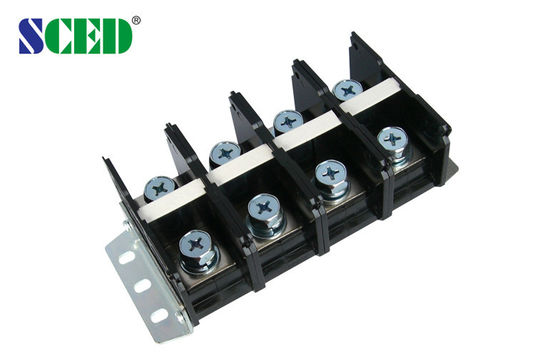

32mm Right Angle High Current Terminal Block For Power Supply 600V 175A

32mm Right Angle High Current Terminal Block For Power Supply 600V 175A

32mm Right Angle High Current Terminal Block For Power Supply 600V 175A

Szczegóły Produktu:

Place of Origin: Shenzhen, China
Nazwa handlowa: SCED
Orzecznictwo: UL, CE
Model Number: TR175-01-BM0

Zapłata:

Minimum Order Quantity: 500
Cena: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Skontaktuj się teraz
Szczegółowy opis produktu
Applications: PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Black
Number of Contacts: Any Poles Available Pitch: 32.00mm
Rated Current: 175A Rated Voltage: 600V
Type: High Current Barrier Terminal Block, Power terminal blocks, Electrical terminal Blocks Wire Range: 3/0-20

32mm Right Angle High Current Terminal Block For Power Supply 600V 175A



Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks





How to order:

32mm Right Angle High Current Terminal Block For Power Supply 600V 175A





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..





Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 175

600 / 175



Wire Range                       AWG

3/0-20

3/0-20



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 175

1000 / 175

1000 / 175

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

80

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

14-18

Screw / Torque                    / lbf.in

M8 / 31-40





32mm Right Angle High Current Terminal Block For Power Supply 600V 175A





Competitive Advantage:



1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
