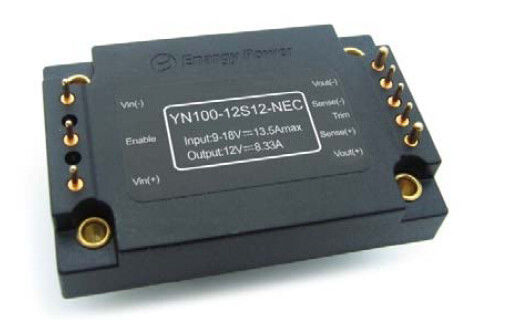

DC-DC Converters 100W Output 12V YN100-12S12-NEC

DC-DC Converters 100W Output 12V YN100-12S12-NEC

  • DC-DC Converters 100W Output 12V YN100-12S12-NEC
DC-DC Converters 100W Output 12V YN100-12S12-NEC
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: Enargy
Model Number: YN100-12S12-NEC
Zapłata:
Minimum Order Quantity: 1pcs
Cena: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 1000Pcs/week
Kontakt
Szczegółowy opis produktu
High Light:

isolated dc dc converter

,

high power dc dc converter

DC-DC Converters 100W Output 12V YN100-12S12-NEC



Key Features

Output power: 100W

Wide input range: 9-18Vdc

High conversion efficiency: Up to 92%

Line regulation to ±1%

Load regulation to ±1%

Isolation voltage :1500V

Enable (ON/OFF) control

Output over-Current protection

Hiccup mode short circuit protection

Over-temperature protection

Input under-voltage lock-out

Output voltage trim: ±8% Vout



Product Overview

These DC-DC converter modules use advanced power

processing, control and packaging technologies to provide

the performance, flexibility, reliability and cost effectiveness

of a mature power component. High frequency Active Clamp

switching provides high power density with low noise and

high efficiency.

  1. Electric Characteristics

1.1 Absolute Maximum Ratings

Parameter Min Typ Max Units Notes
Input Voltage     24 Vdc Continuous, non-operating
    20 Vdc Continuous, operating
    24 Vdc Operating transient protection,<100mS
Isolation Voltage     2000 Vdc Input to Output
Operating Temperature -40   100 In view of PCB Temperature
Storage Temperature -55   105
Enable to -Vin Voltage -0.5   5 Vdc



1.2 Input Characteristics

Parameter Min Typ Max Units Notes
Input Voltage Range 9 12 18 Vdc
Under-Voltage Lockout   8 8.9 Vdc Recovery point
7.5 8   Vdc Protect point
Maximum Input Current     13.5 A Vin min,Output full load
Efficiency   91   % Rated input;Rated load
Dissipation,standby   7 11 W No Load



1.3 Output Characteristics

Parameter Min Typ Max Units Notes
Output Voltage Set point 11.88 12.00 12.12 Vdc Rated input voltage,No load
Output Voltage Range 11.88 12.00 12.24 Vdc Rated input voltage, load
Output Current Range 0   8.33 A
Line Regulation   ±0.5 ±1 %
Load Regulation   ±0.5 ±1 %
Current Limit 8.7 10 10.9 A Output voltage 95% of nominal
Short Circuit Current     10 A
Ripple (RMS)   80   mV Nominal input; full load; 20 MHz bandwidth.
Noise(Peak-to-Peak)   120   mV

Capacitive load from

themachine

    4000 μF



1.4 Dynamic Response Characteristics

Parameter Min Typ Max Units Notes
Change In Output Current     400 mV 50% to 75% to 50% Iout max; (di/dt= 0.1A/µs)
    480 mV 50% to 75% to 50% Iout max; (di/dt= 2.5A/µs)
Dynamic recovery time   300   μS
Turn-on Time   15   mS Starting from vin to vout rise to 90%
Turn-off overshoot     5 mS



1.5 Functional Characteristics

Parameter Min Typ Max Units Notes
Switching Frequency 200 230 260 KHz
Output Trim   8   % Vout Trim Up
  8   Trim Up 0 8 0 Trim Down
Enable Current     5 mA
Enable (ON/OFF) -0.5   0.5 Vdc ON-control, Logic high or floating
3.5   10 Vdc OFF-control, Logic low
Over-Load Protection 110 120 130 % Current mode,Pulse current(100% rared load)
Over- Temperature Protection   105   Protect point,In view of PCB Temperature
  90   Recovery point



1.6 Isolation Characteristics

Parameter Min Typ Max Units Notes
Isolation Voltage 1500     Vdc Input to Output
1500     Vdc Input to Base
500     Vdc Output to Base
Isolation Resistance 100     MΩ Output to BaseAt 500Vdc to test it when atmospheric pressure and R.H. is 90%
Isolation Capacitance   1000   pF



2. General Characteristics

Parameter Min Typ Max Units Notes
Weight   2.5(72)   Oz (g)
MTBF ( calculated ) 1     MHrs TR-NWT-000332; 80% load,300LFM, 40℃ Ta



3. Environmental Characteristics

Parameter Min Typ Max Units Notes
Operating Temperature -40   100 base PCB temperature
Storage Temperature -55   105 Ambient
Temperature Coefficient     ±0.02 %/℃
Humidity 20   95 %R.H. Relative Humidity, Non - Condensing



4. Standards Compliance

Parameter Notes
MIL-STD-704
MIL-STD-1399
MIL-STD-810
UL/cUL60950
GB4943
IEC 61000-4-2



5. Typical Wave And Curves

DC-DC Converters 100W Output 12V YN100-12S12-NEC 0DC-DC Converters 100W Output 12V YN100-12S12-NEC 1

Figure 1: Efficiency at nominal output voltage vs. load current for minimum, nominal, and maximum input voltage at 25°C.

Figure 2: Efficiency at nominal output voltage and 60% rated power vs. airflow rate for ambient air temperatures of 25°C, 40°C, and 55°C (nominal input voltage).

DC-DC Converters 100W Output 12V YN100-12S12-NEC 2DC-DC Converters 100W Output 12V YN100-12S12-NEC 3



Figure 3: Maximum output power derating curves vs. ambient air temperature for airflow rates of 0 LFM through 400 LFM with air flowing from pin 3 to pin 1 (nominal input voltage).

Figure 4: Output voltage ripple at nominal input voltage and rated load current (20 mV/div). Load capacitance: 0.1μF ceramic capacitor and 10μF tantalum capacitor. Bandwidth: 20 MHz.

DC-DC Converters 100W Output 12V YN100-12S12-NEC 4DC-DC Converters 100W Output 12V YN100-12S12-NEC 5



Figure 5: Thermal plot of converter at full load current(100W) with 25°C air flowing at the rate of 200 LFM. Air is flowing across the converter from pin 3 to pin 1 (nominal input voltage).

Figure 6: Thermal plot of converter at full load current(100W) with 25°C air flowing at the rate of 200 LFM. Air is flowing across the converter from input to output (nominal input voltage).



DC-DC Converters 100W Output 12V YN100-12S12-NEC 6DC-DC Converters 100W Output 12V YN100-12S12-NEC 7



Figure 7: Turn-on transient at full load (resistive load) (200ms/div).Input voltage pre-applied. Ch1:Vout (10V/div);Ch2:ON/OFF Input (5V/div)

Figure 8: Shut-down fall time at full load (40 ms/div). Ch1:Vout (10V/div);Ch2:ON/OFF Input (5V/div)



DC-DC Converters 100W Output 12V YN100-12S12-NEC 8DC-DC Converters 100W Output 12V YN100-12S12-NEC 9



Figure 9: Output voltage response to step-change in load current (50%-75%-50% of Iout(max); dI/dt = 0.1A/μs). Load cap: 10μF, 100 mΩ ESR tantalum capacitor and 0.1μF ceramic capacitor. Ch1: Vout (200mV/div).

Figure 10: Output voltage response to step-change in load current (50%-75%-50% of Iout(max): dI/dt = 2.5A/μs). Load cap: 10μF, 100 mW ESR tantalum capacitor and 0.1μF ceramic cap. Ch1:Vout (200mV/div).



6. Physical Information



6.1 Mechanical Outline



DC-DC Converters 100W Output 12V YN100-12S12-NEC 10



Notes:

1. Pins 6, 10 are 1.52mm dia. with 2.16mm dia.

2. Tolerances: x.x ±0.5mm.x.xx ±0.25mm



6.2 Pin Designations

Pin No. Name Function
1 Vin(+) Positive input voltage
2 NU NU
3 Enable TTL input to turn converter on and off, referenced to Vin(-), with internal pull up.
4 NU NU
5 Vin(-) Negative input voltage
6 Vout(-) Negative output voltage
7 Sense(-) Negative remote sense. Sense(-) may be connected to Vout(-) or left open.
8 Trim Output voltage trim. Leave Trim pin open for nominal output voltage.
9 Sense(+) Positive remote sense. Sense(+) may be connected to Vout(+) or left open.
10 Vout(+) Positive output voltage
