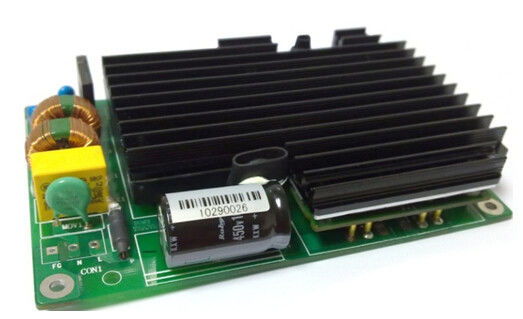

High frequency switching 100W AC-DC Power Supplies Output 48V SC100-220S48

High frequency switching 100W AC-DC Power Supplies Output 48V SC100-220S48

High frequency switching 100W AC-DC Power Supplies Output 48V SC100-220S48

Szczegóły Produktu:

Place of Origin: China
Nazwa handlowa: Enargy
Model Number: SC100-220S48

Zapłata:

Minimum Order Quantity: 1pcs
Cena: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 15000Pcs/week
Skontaktuj się teraz
Szczegółowy opis produktu

AC-DC Power Supplies 100W Output 48V SC100-220S48





Key Features

High output power: 100W

Input range: 85~264Vac

High efficiency: 85%

Line regulation: ≤±1%

Load regulation: ≤±2%

Fixed frequency: 220kHz

Isolation Voltage :1500Vdc

Short circuit protection

Output over current protection

Over temperature protection



Product Overview

This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.



Electric Characteristics

Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Rated input voltage



220



Vac



AC input voltage range

85



264

Vac



Rated AC input frequency



50/60



Hz



AC input frequency range

47



63

Hz



Max. input current





2

A

Min. input voltage, full load

Efficiency



85



%

Rated input voltage, rated load

Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output voltage range

47.52

48

48.48

Vdc



Output current range

0.1



2.1

A



Line Regulation





±1

%



Load Regulation





±2

%



Ripple & noise





800

mV

Rated input, full load, 20 MHz bandwidth

Dynamic response

Deviation





±1

%

25% to 50% to 25% Iout max, 50% to 75% to 50% Iout max,0. 1A/us

Settling time





500

uS

To within 1% Vout nom.

Output voltage overshoot





1

%



Output Capacitance



470



μF



Protection Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output over load protection

2.3



2.8

A

Hiccup

Short – Circuit Protection





10

Hiccup

Over-temperature protection



105



Auto recovery



General Characteristics

Parameter

Min

Typ

Max

Units

Notes

MTBF

100





KHrs

TR-NWT-000332, 80% load, 300LFM, 40℃ Ta

Weight





300

g



Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating temperature

-20



+55



Storage temperature

-40



+85



Relative humidity

10



90

%



Altitude





3000

m





Safety Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation voltage

Input to output

1500





Vdc

10mA/1min, No arcing and breakdown

Input to ground

1000





Vdc

Output to ground

500





Vdc

7.5mA/1min, No arcing and breakdown

Isolation resistance

Input to output

100





500Vdc/1min, normal atmospheric pressure, 90% humidity



Environmental Qualification

Parameter

Notes

Vibration

Frequency range: 5-20Hz,+3dB/otc; 20-80Hz,0.04g2/Hz; 80-500Hz, -3dB/ot c ; X.Y.Z axes, 30min/axis

Mechanical Shock

Half-sine wave, 300m/s2,11ms, ±X,±Y,±Z, 6tims/direction

Cold(in operation)

IEC60068-2-1  Ad

Damp heat

IEC60068-2-67  Cy

Temperature Cycling

-20°C to 85°C, ramp 15°C/min., 500 cycles

Power/Thermal Cycling

Vin = min to max, full load, 100 cycles

Design Marginality

Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load

Life Test

95% rated Vin and load, units at derating point, >5000 hours

Solder ability

IEC60068-2-20

Standards compliance

Standards

Notes

UL/cUL60950



EN60950



EN60601-1



SCA 22.2NO.601.1



UL2601



CSA22.2No.60950-1





Physical Information

Mechanical Outline

Length×width×heigth:135×90×28(mm), 5.32×3.54×1.1(in),



High frequency switching 100W AC-DC Power Supplies Output 48V SC100-220S48

Pin designations



CON1

Pin No.

Name

Function

1

FG

Earth

2

N

Neutral line

3

L

Live line



CON2

Pin No.

Name

Function

1

-48V

Negative output voltage

2

-48V

Negative output voltage

3

GND

Positive output voltage

4

GND

Positive output voltage



Application Notes: A variety of application notes and technical white papers can be downloaded in pdf format from our website.
