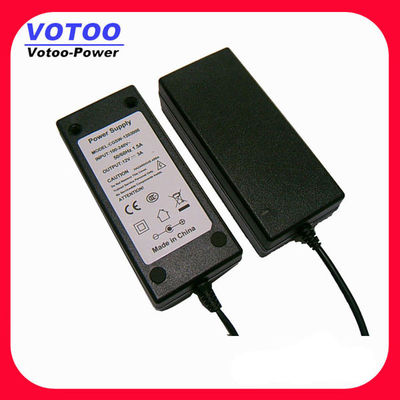

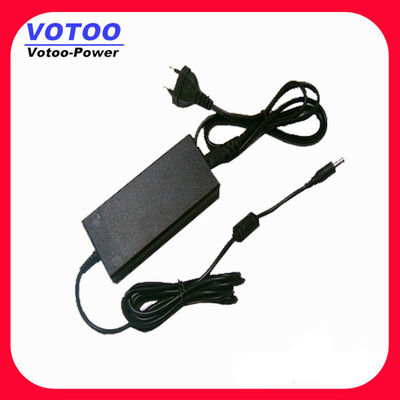

POS Terminal Adapter 24v 2.5a AC DC Power Supply With EU AC Plug

POS Terminal Adapter 24v 2.5a AC DC Power Supply With EU AC Plug

  • POS Terminal Adapter 24v 2.5a AC DC Power Supply With EU AC Plug
  • POS Terminal Adapter 24v 2.5a AC DC Power Supply With EU AC Plug
  • POS Terminal Adapter 24v 2.5a AC DC Power Supply With EU AC Plug
  • POS Terminal Adapter 24v 2.5a AC DC Power Supply With EU AC Plug
POS Terminal Adapter 24v 2.5a AC DC Power Supply With EU AC Plug
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: VOTOO
Orzecznictwo: CE,ROHS
Model Number: VP-2402500
Zapłata:
Minimum Order Quantity: 100pcs
Cena: negotiation
Packaging Details: white box
Delivery Time: 5-10 days
Payment Terms: Ex works
Supply Ability: 1, 000, 000PCS/week
Kontakt
Szczegółowy opis produktu
High Light:

power adapter supply

,

external ac power adapter

 POS terminal adapter 24V 2.5A AC DC power supply with EU AC plug



Quick Detail:



  1. POS terminal adapter 24V 2.5A
  2. Type: desktop type
  3. AC plug: EU,US,AUS,UK,CN etc.
  4. DC plug: 5.5*2.1mm,5.5*2.5mm,3.5*1.35mm, micro/mini usb etc.
  5. Material:plastic materials
  6.  Certificate: CE & RoHS
  7.  leakage Current: 0.25mA
  8. Safety : SCP OCP OVP
  9. OEM/ODM welcome





Features:

o Output Voltage: 24V

o Output Current: 2500mA

o Power:60Watt

o Leakage Current: 0.25mA

o No load power Consumption

o Working Temperature:0-40°C Max

o Efficiency:86%Min

o High Efficiency

o Short Circuit Protection

o Universal Input 100~240VAC 50/60Hz

o Small volume, light weight, high efficiency.

o Cooling by free air convection.

o 100% Full load burn-in test.

o One year warranty.

o Ripple & Noise: 1% of Output Voltage



o Over Voltage Protection

o Over Current Protection

o Green Circuit Design

Weight: 370g

o Dimensions: 119.0 x52.0 x 32.0mm

o Accurate information and descriptions.

o All orders are shipped on time.

o All items are fully inspected prior to shipping to meet international standards by our QC staffs.

o All items are with CE RoHS approval to ensure the products quality.





Packing details:

1 piece per white box

40PCS/CTN

G.W.: 11.5KGS/CTN

N.W.: 12.5KGS/CTN




Specification:




OUTPUT

DC VOLTAGE

24V

OUTPUT POWER

60W

CURRENT RANGE

2500mA



INPUT

VOLTAGE RANGE

110VAC -264V AC

FREQUENCY RANGE

50-60Hz

EFFICIENCY(Typ.)

86%



ENVIRONMENT

WORKING TEMP.

-0°C ~ +40°C (Refer to output load derating curve)

STORAGE TEMP.,HUMIDITY

-10°C ~ +70°C 10~95% RH

COOLING METHOD

BY FREE AIR CONVECTION





How to Install?



  1. Before connecting check whether the power supply fullfields electrical specification (output voltage and current). Also check the socket type and its polarity.
  2. Connect power supply to the supplied unit.
  3. Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
  4. Do not install power supply in locations with high humidity, dust or strong direct sunlight.
  5. The power supply should be installed in a location with good airflow.
  6. Power supply can only be installed indoors.
  7. AC wire should connect tight with adapter socket, in case poor contact socket.





Applications:

1. CCTV security, door access, digital camera, etc.

2. POS machine, mini printing machine, etc.

3. Electronic scale, flowerpot etc.

4. LED strip, LED lighting etc.



POS Terminal Adapter 24v 2.5a AC DC Power Supply With EU AC Plug 0

POS Terminal Adapter 24v 2.5a AC DC Power Supply With EU AC Plug 1
