High efficiency 72W Medical Power Supply ac dc converter 24Volt DC / 3A SC72-220S24

High efficiency 72W Medical Power Supply ac dc converter 24Volt DC / 3A SC72-220S24

  • High efficiency 72W Medical Power Supply ac dc converter 24Volt DC / 3A SC72-220S24
High efficiency 72W Medical Power Supply ac dc converter 24Volt DC / 3A SC72-220S24
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: Enargy
Model Number: SC72-220S24
Zapłata:
Minimum Order Quantity: 1pcs
Cena: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 15000Pcs/week
Kontakt
Szczegółowy opis produktu
High Light:

medical grade power supplies

,

ac to dc converter

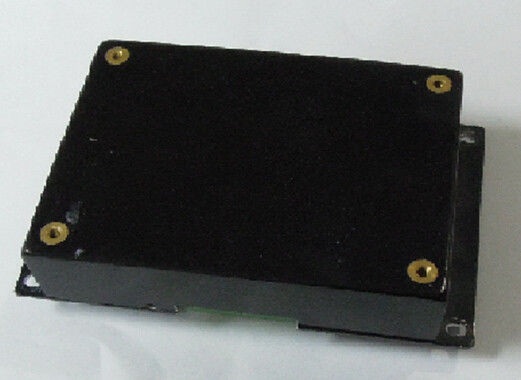

Medical Power Supply 72W Output 24VDC/3A SC72-220S24





Key Features

AC input range:90~265Vac

Single outputs:24V/3.0A

High efficiency:85%

Line regulation: ≤±2%

Load regulation: ≤±2%

Low ripple&noise:≤100mV

short circuit protection

Output over voltage protection

Input over voltage protection

Over temperature protection

Natural cool



Product Overview

This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.



Electric Characteristics



Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Rated input voltage

110



240

Vac



AC input voltage range

90



265

Vac



AC input frequency range

47



63

Hz



Input inrush current





60

A

Max. input voltage,25℃, first start

Efficiency

84

85



%

Rated input voltage, rated load



Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output voltage range

23.5

24

24.5

Vdc



Output current range

0



3

A



Line Regulation





±2

%



Load Regulation





±2

%



Voltage stabilizing

precision





±2

%



Temperature Regulation



±0.02



% / °C

Over operating temperature range

Ripple & noise





100

mV

20 MHz bandwidth. output with 10uF electrolytic capacitor and 0.1uF ceramic capacitor at full rated current.

Dynamic response

Deviation





±5

%

25% to 50% to 25% Iout max, 50% to 75% to 50% Iout max, 2.5A/us

Settling time





300

uS

To within 1% Vout nom.

Turn-on delay time





8

s

220Vac, Full load

Output voltage overshoot





±5

%



Output Capacitance



1000



μF



TTL signal

3



12

V

High level, output ok

-0.3



1

V

Low level, output fail



Protection Characteristics

Parameter

Min

Typ

Max

Units

Notes

Input over voltage protection

Protect voltage

275



300

Vac



Recovery voltage

265



280

Vac



Output over voltage protection

26



28

Vdc

Constant voltage

Short – Circuit Protection





10

Hiccup

Over-temperature protection





Required to restart



General Characteristics

Parameter

Min

Typ

Max

Units

Notes

MTBF

100





KHrs

Rated input, full load,25℃



Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating temperature

-30



+70



Storage temperature

-40



+85



Relative humidity

5



95

%



Storage humidity

10



95

%



Altitude





3000

m



Atmospheric pressure

70



106

KPa





Safety Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation voltage

Input to output

1500





Vac

10mA/1min, No arcing and breakdown

Input to ground

1500





Vac

Output to ground

500





Vdc

10mA/1min, No arcing and breakdown

Isolation resistance

Input to output

10





500Vdc/1min, normal atmospheric pressure, 90% humidity

Leakage current

Input to ground





1.5

mA

240Vac,normal condition



EMC Characteristics

Item

Standards

Conditions

Notes

CE

EN55022

Class B

Pass system test

RE

EN55022

Class B

Pass system test

Harmonic

EN61000-3-2

C type lamps requirements

Criterion B

Voltage fluctuations and flicker

EN61000-3-3

Class A equipments requirements

Criterion B

Surge

EN61000-4-5

Differential mode ±2KV,common mode±4KV

Criterion B

DIP

EN61000-4-11

EN55024

Voltage dip to 0%Ut,10ms

Criterion B, test at phase 0, 90, 180 and 270

Voltage dip to 40%Ut, 20ms

Voltage dip to 70%Ut,50ms

ESD

Air discharge

EN61000-4-2

±8KV

Criterion B

Contact discharge

EN61000-4-2

±4KV

Criterion B

Notes:

Criterion A: Normal performance during and after test.

Criterion B: Low-voltage protection or reset is not allowed. Temporary output voltage fluctuation ceases after disturbances ceases, and from which the EUT recovers its normal performance automatically. During the system test, output voltage fluctuation or reset is not allowed too.

Criterion C: Temporary loss of output is allowed, but the hardware can’t be damaged. The EUT recovers its normal performance automatically or operator intervention.

Criterion R: Loss of output which is not recoverable is allowed. The primary protective component (fuse) can be damaged. The EUT recovers its normal performance after replace the damaged component.



Mechanical Outline

Length×width×heigth:4.72×2.99×0.94(in),

High efficiency 72W Medical Power Supply ac dc converter 24Volt DC / 3A SC72-220S24 0



Connector designations



Pin No.

Name

Function

1

VO+

Positive output voltage

2

GND

Negative output voltage

3

TTL

TTL signal

4

N

AC input

5

 L

AC input

6

FG

The earth
