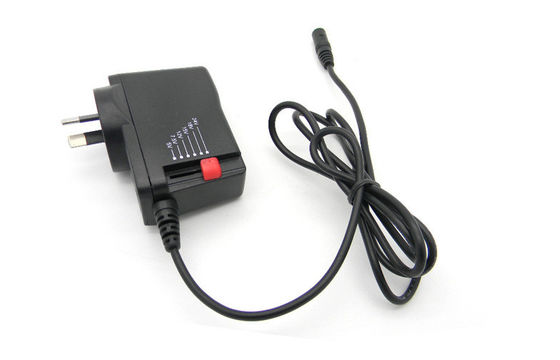

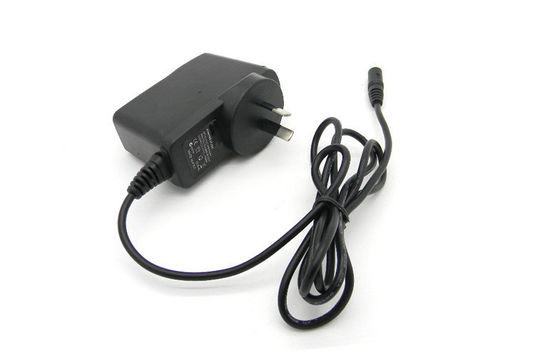

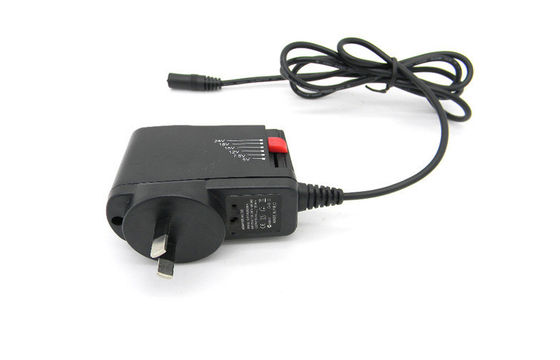

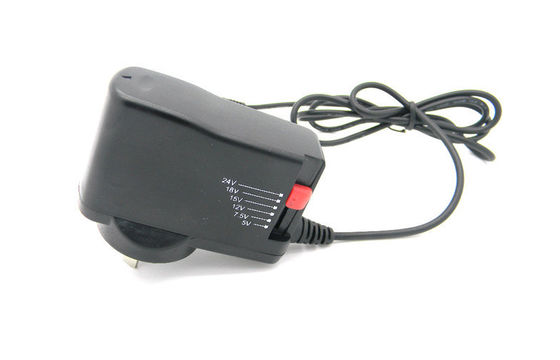

1000mA 12W Wall Mount Power Adapter Ajustable 3V - 12V With SAA Plug

1000mA 12W Wall Mount Power Adapter Ajustable 3V - 12V With SAA Plug

    • 1000mA 12W Wall Mount Power Adapter Ajustable 3V - 12V With SAA Plug
    • 1000mA 12W Wall Mount Power Adapter Ajustable 3V - 12V With SAA Plug
    • 1000mA 12W Wall Mount Power Adapter Ajustable 3V - 12V With SAA Plug
  • 1000mA 12W Wall Mount Power Adapter Ajustable 3V - 12V With SAA Plug

    Szczegóły Produktu:

    Place of Origin: Shenzhen,China
    Nazwa handlowa: RAYTOP
    Orzecznictwo: CE, RoHS, FCC
    Model Number: RT-MPA-03121200A

    Zapłata:

    Minimum Order Quantity: 100 PCS
    Cena: Negotiable
    Packaging Details: Gift box and blister, 200 PCS/Carton
    Delivery Time: 15-20 working days.
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 20,000 Pcs per month.
    Skontaktuj się teraz
    Szczegółowy opis produktu
    Input: Australia Plug Universal AC Adapter Cable Material: Copper
    DC Cable: 1.2M EMI Standards: FCC Part 15B
    Voltage Selection Mananer: Manual MTBF: 50000 Hours
    Output: 3/5/6/7.5/9/12V DC Output Power: 12W
    Plug: SAA Protection: Short Circuit, Over Voltage, Over Current



    1000mA 12W Wall Mount Power Adapter Ajustable 3V - 12V With SAA Plug





    Quick Detail:



    Switching mode power adapter with multiple rated output voltage DC 3.0/5.0/6.0/7.5/9.0/12.0V. 8 different tips guarantee the great compatibility with many electronic devices such as Router, POS System, Security Cameras, Tablets etc.





    Specs:



    Input: AC100-240V, 200mA Max.

    Frequency: 50/60Hz

    Output: DC3.0/5.0/6.0/7.5/9.0/12.0V

    DC Cable: 22AWG, Copper, length: 1.2M

    Plug:SAA

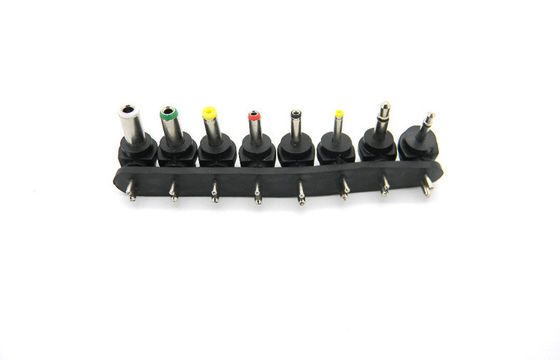

    8 different size tips.





    Features:



    -High efficiency:>85%;

    -Protection: Short circuit protection, over voltage protection, over current protection.

    -MTBF: 50,000 hours.





    Approval: CE, RoHS, FCC

    Warranty: 2 years





    Description:



    This is an universal AC adapter come with 8 different size tips, its output vary from 3.0 to 12.0 DC. It has high efficiency as well as steady performance.

    Note: indoor use only.





    Applications: widely used for Router, POS System, Security Cameras, Tablets etc.





    Specifications:



    Input

    Rated Input Voltage

    AC100~240V

    Input Voltage Range

    AC 90~264V

    Rated Frequency

    50/60 Hz

    Input Frequency Range

    47~63 Hz

    Input AC Current

    200mA

    Inrush Current

    30A

    Output

    Rated Output Voltage

    DC3/5/6/7.5/9/12V

    Rated Output Current

    1000mA

    Rated Power

    12W

    Ripple and Noise

    150mV p-p

    Standby Power Consumption

    0.3W

    Turn-on

    5s

    Hold-up

    20s

    Over Voltage Protection

    Yes

    Over Current Protection

    Yes

    Short Circuit Protection

    Yes, automatically recover after short circuit removed.

    Reliability

    Hi-pot

    3000Vac

    Insulation Resistance

    Input to output at 500Vdc

    Leakage Current

    5mA

    EMI Standards

    FCC Part 15B Class B

    RoHS Compliant

    Yes

    MTBF

    50,000 hours

    Burn-in

    40+/-5 ℃, full load, 12 hours

    Drop Test

    6 direction, each one time from height 1.0M

    Environmental

    Operating Temperature

    0~40℃

    Operating Humidity

    10~80%

    Storage Temperature

    -20~65℃

    Storage Humidity

    0~90%

    Safety Approvals

    CE, RoHS, FCC, UL, SAA

    Warranty

    2 Years





    Competitive Advantage:



    -Open private model w/o extra cost for you;

    -0.3% free backup of order quantity;

    -Direct factory price without middle man.

    -High performance-to-price ratio;

    -Perfect after-sale service
