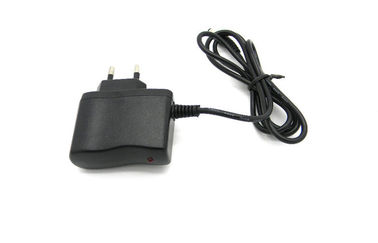

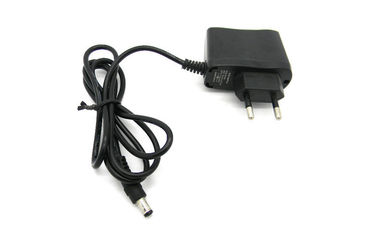

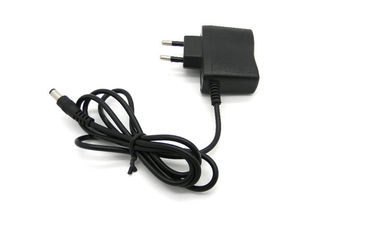

5V 1000mA Wall Mount Power Supplies 5.5x2.1mm EU Plug , 50Hz / 60Hz

5V 1000mA Wall Mount Power Supplies 5.5x2.1mm EU Plug , 50Hz / 60Hz

  • 5V 1000mA Wall Mount Power Supplies 5.5x2.1mm EU Plug , 50Hz / 60Hz
  • 5V 1000mA Wall Mount Power Supplies 5.5x2.1mm EU Plug , 50Hz / 60Hz
  • 5V 1000mA Wall Mount Power Supplies 5.5x2.1mm EU Plug , 50Hz / 60Hz
  • 5V 1000mA Wall Mount Power Supplies 5.5x2.1mm EU Plug , 50Hz / 60Hz
5V 1000mA Wall Mount Power Supplies 5.5x2.1mm EU Plug , 50Hz / 60Hz
Szczegóły Produktu:
Place of Origin: Shenzhen,China
Nazwa handlowa: RAYTOP
Orzecznictwo: CE, RoHS, FCC
Model Number: RT-WMA-0500100
Zapłata:
Minimum Order Quantity: 100 PCS
Cena: Negotiable
Packaging Details: PE Bag, Master Carton, Customer package available.
Delivery Time: 15-20 working days.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200,000 Pcs monthly.
Kontakt
Szczegółowy opis produktu
Product Name: 5V 1A Wall mount Power Adapter Input: AC10-240V, 50/60Hz, 0.3A
Output: 5V, 1A / 6V 1A, 12V 0.5A AC Plug: EU,US,UK,SAA,CCC
AC Cable: 2x0.5mm2, 1.2M DC Plug: AWG24, 1.2M
DC Connector: 5.5x2.1mm, 5.5x2.5mm Color: Black
Protection: Short circuit protection, over voltage protection, over load protection
High Light:

Wall Mount Power Supply

,

ac to dc power converter



5V 1000mA Wall Mount Power Supplies 5.5x2.1mm EU Plug , 50Hz / 60Hz





Quick Detail:



High frequency switching mode power adapter, DC 5V 1000mA, wall mount style in conformity with CE, RoHS, FCC certification





Specs:



Input: AC100-240V, 0.2A max.

Frequency: 50/60Hz

Output: DC5V, 1000mA

DC Cable: 24AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC





Features:



-World wide voltage input;

-High efficiency:>85%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.





Approval: CE, RoHS, FCC

Warranty: 2 years





Description:



This is an AC power adapter come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.





Note:



indoor use only.





Applications:



used for digital devices, LCD, LED, emergency light, home appliance electrical products etc.





Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

0.2A

Inrush Current

30A

Output

Rated Output Voltage

DC5V

Rated Output Current

1000mA

Rated Power

5W

Ripple and Noise

150mV p-p

Standby Power Consumption

0.3W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 12 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC, UL, SAA

Warranty

2 Years





Competitive Advantage:



-Open private model w/o extra cost for you;

-0.3% free backup of order quantity;

-Direct factory price without middle man.

-High performance-to-price ratio;

-Perfect after-sale service
