Gaoxin Industrial Park, Guangming New Zone, Shenzhen w prowincji Guangdong, Chiny | Angelwang66@126.com |
Place of Origin: | Shenzhen,China |
Nazwa handlowa: | RAYTOP |
Orzecznictwo: | CE, RoHS, FCC |
Model Number: | ET0600500 |
Minimum Order Quantity: | 2K |
---|---|
Cena: | Negotiable |
Packaging Details: | PE Bag, Master Carton, Customer package available. |
Delivery Time: | 15-20 work days. |
Payment Terms: | T/T, L/C |
Supply Ability: | 200,000 Pcs monthly. |
AC Cable: | 1.2M | Approval: | CE, RoHS, FCC, UL, SAA |
---|---|---|---|
Cable Material: | Copper | DC Cable: | 1.2M |
EMI Standards: | FCC Part 15 Class B | Feature: | High Efficency |
Frequency: | 50Hz / 60Hz | Input: | AC100-240V |
MTBF: | 50000 Hours | Operating Temperature: | 0~40℃ |
Output: | DC6V | Output Power: | 3W |
Plug: | EU, US, UK, SAA, CCC | Product Name: | wall mount power supply |
Protection: | Short Circuit, Over Voltage, Over Current | ||
High Light: | Wall Mount Power Supply,ac to dc power converter |
Quick Detail:

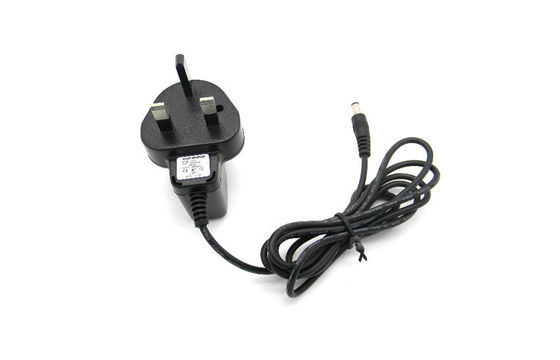

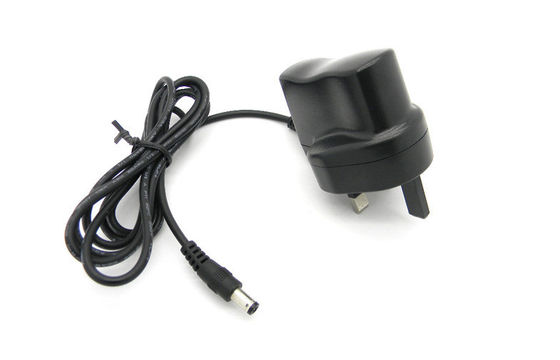

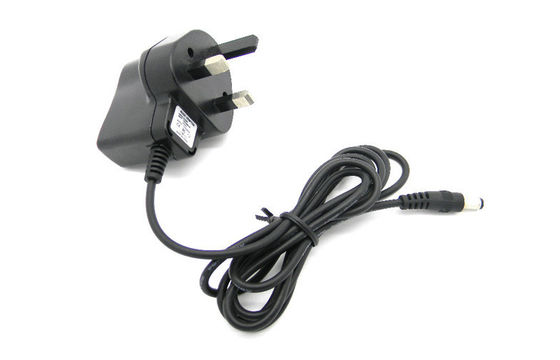

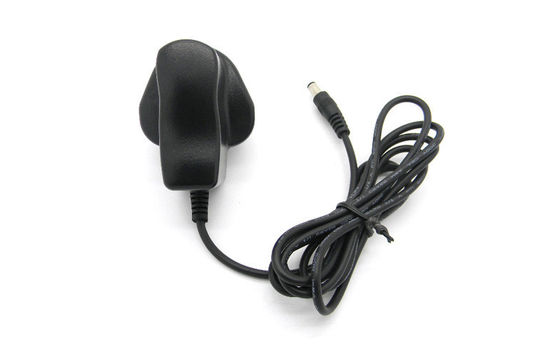

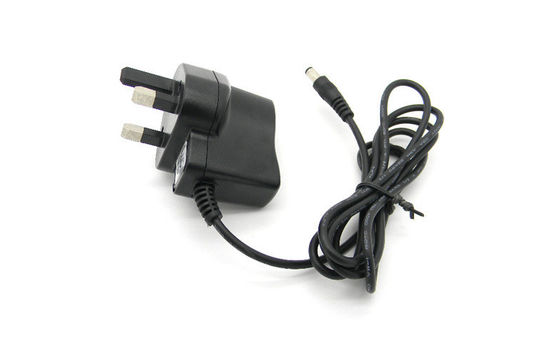

Switching mode power adapter, DC6V 500mA, wall mount in conformity with CE, RoHS, FCC certification, with full protection functions.
Specs:
Input: AC100-240V, 1.2A max.
Frequency: 50/60Hz
Output: DC6.5V, 500mA
DC Cable: 24AWG, Copper, length: 1.2M
Plug: EU, UK, US, SAA, CCC
Features:
-High efficiency:>85%;
-Protection: Short circuit protection, over voltage protection, over current protection.
-MTBF: 50,000 hours.
-Compact size, light weight.
Approval: CE, RoHS, FCC
Warranty: 2 years
Description:
This is an universal AC/DC adapter with rated output power 3Watt, the output connector size is 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.
Note:
Indoor use only.
Applications:
used for cordless phone, sphygmomanometer,repeater etc.
Specifications:
Input |
Rated Input Voltage |
AC100~240V |
Input Voltage Range |
AC 90~264V |
|
Rated Frequency |
50/60 Hz |
|
Input Frequency Range |
47~63 Hz |
|
Input AC Current |
100mA |
|
Inrush Current |
30A |
|
Output |
Rated Output Voltage |
DC6V |
Rated Output Current |
500mA |
|
Rated Power |
3W |
|
Ripple and Noise |
150mV p-p |
|
Standby Power Consumption |
0.3W |
|
Turn-on |
5s |
|
Hold-up |
20s |
|
Over Voltage Protection |
Yes |
|
Over Current Protection |
Yes |
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
Reliability |
Hi-pot |
3000Vac |
Insulation Resistance |
Input to output at 50Vdc |
|
Leakage Current |
5mA |
|
EMI Standards |
FCC Part 15B Class B |
|
RoHS Compliant |
Yes |
|
MTBF |
50,000 hours |
|
Burn-in |
40+/-5 ℃, full load, 12 hours |
|
Drop Test |
6 direction, each one time from height 1.0M |
|
Environmental |
Operating Temperature |
0~40℃ |
Operating Humidity |
10~80% |
|
Storage Temperature |
-20~65℃ |
|
Storage Humidity |
0~90% |
|
Safety Approvals |
CE, RoHS, FCC, UL, SAA |
|
Warranty |
2 Years |
Competitive Advantage:
-Open private model w/o extra cost for you;
-0.3% free backup of order quantity;
-Direct factory price without middle man.
-High performance-to-price ratio;
-Perfect after-sale service
