Three phase UPS Uninterruptible Power Supply , High Frequency Power Supply

Three phase UPS Uninterruptible Power Supply , High Frequency Power Supply

Three phase UPS Uninterruptible Power Supply , High Frequency Power Supply

Szczegóły Produktu:

Place of Origin: Shenzhen China
Nazwa handlowa: EYEVISON
Orzecznictwo: CE FCC RoHS
Model Number: HP3110KS

Zapłata:

Minimum Order Quantity: 10
Packaging Details: Color package
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 per year
Skontaktuj się teraz
Szczegółowy opis produktu
Model: HP3110KS Phase number: Three phase
Switching time: 0ms Voltage range: 210-487VAC
Power factor: 0.8 Output voltage: 220/230VAC±1%



Three phase UPS Uninterruptible Power Supply , High Frequency Power Supply





Outline:



HP series on-line series is the product that has strong adaptability and flexible configuration, adopt double conversion pure

architecture, design, can provide a good solution when voltage too high or too low, transient voltage drop or damped oscillation, high voltage pulse, voltage fluctuation, surge voltage, harmonic distortion and noise disturbance, such as frequency rate fluctuation condition,so as to ensure the safe and reliable power supplies for user load ; With the advanced DSP digital control technology; Effectively improve the product performance and system reliability and achieve higher power density of integration miniaturization. At the same time in order to meet the personalized needs for users in all directions, high-frequency series 1 k - on-line 20 k provides a very rich extensible function, according to requirement, users can to be flexible configuration.





Application:



Servers, storage, network equipment, communications equipment, automation equipment, precision instruments, medical diagnostic equipment, OFFICE terminal, monitoring, security systems, important household appliances.





Applicable industry:



 telecom, finance, government, health care, education, manufacturing, postal logistics, transportation, commercial/retail.





Functional features:



1. Breakthrough ultra compact design and high power density,  equipment volume are smaller 20% ~ 70% than the same type product.

2. Double conversion on-line design, ensure the power supply reliability.

3. The super wide input voltage/frequency range,to adapt the severe power grid environment.

4. LCD display,  in order to more directly and conveniently for setup.

5. input voltage range:120 ~ 288 v, output not derating, greatly reduce the probability of transfer cells, improve the battery life.

6. Strong overload capacity: within nominal voltage ,overload 130% for 10 minutes, 150% for 1 minute, meet the customer load requirements.

7.8 A lead charging ability, the ability of charging can be set up, meet the long time delay battery recharge quickly, improve the battery life

8. Excellent environmental protection, energy saving features, efficiency of 3-4% higher than the same products at the same time can be as high as 91%.

9. Rich monitoring management option, improve system reliability.





Technical specifications and parameters:



model

HP3110KS

capacity

10KVA/8KW

phase number

Three phase



output

voltage range

210-487VAC

frequency range

47~53Hz or 57~63Hz

power factor

≥0.99@ nominal voltage(100%load)



output

output voltage

220/230VAC±1%

frequency range

Synchronization with input(AC) 50Hz±0.2Hz or 60Hz±0.2Hz(battery mode)

power factor

0.8

switching time

0ms

output waveform

pure sine wave

overload capacity

load<105%,long-time running,105%< load <125%>1min,125%<load<30ms



battery

battery model (standard machine)



Dc voltage(Long-acting machine)

192v/240V

Size(standard machine)



size(Long-acting machine))

592*250*576



operating environment

humidity

20-90%RH@0-40℃ (Non-condensate)

Noise

<45dBA@1Meter



control supervisor

Smart RS-232/ select USB

support Windows ® 2000/2003/XP/Vista/2008

selectSNMP

Power management support SNMP management and network management





Competitive advantages:



1. Leading and professional manufacturer in CCTV industry
2. High quality
3. Competitive and reasonable price
4. Best pre-sale,sale and after-sale service
5. Professional technical support
6. CE,FCC,RoHS passed

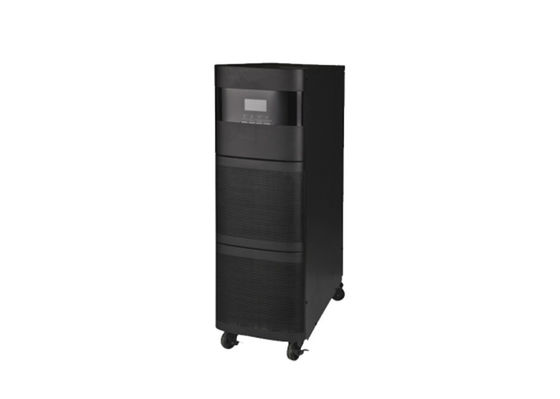

Product picture:



Three phase UPS Uninterruptible Power Supply , High Frequency Power Supply
