Place of Origin: | China |
Nazwa handlowa: | UPSEN |
Orzecznictwo: | CE, ISO, RoHS |
Model Number: | Queen Star Series 1-3Kva |
Minimum Order Quantity: | 5pcs |
---|---|
Cena: | Negotiation |
Packaging Details: | Cartons & Wooden Pallet |
Delivery Time: | 7-15 Days |
Payment Terms: | T/T, LC, WU, Money Gram etc |
Supply Ability: | 50,000pcs/Month |
Type: | Online | Output Power Factor: | 0.8 |
---|---|---|---|
Phase: | Single Phase | Protection: | Over Load/Current/Voltage, Short Circuit etc |
Display: | Digital LCD Display | H.S. Code: | 8504402000 |
High Light: | true online double conversion ups,commercial ups systems |

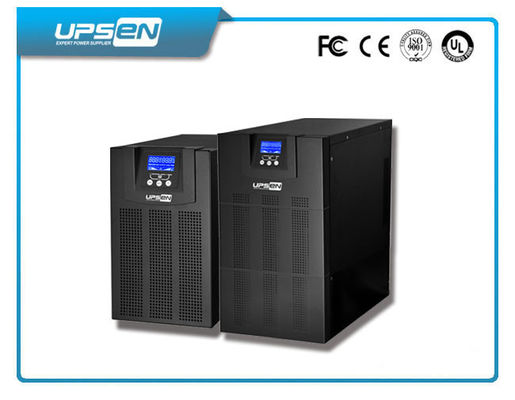

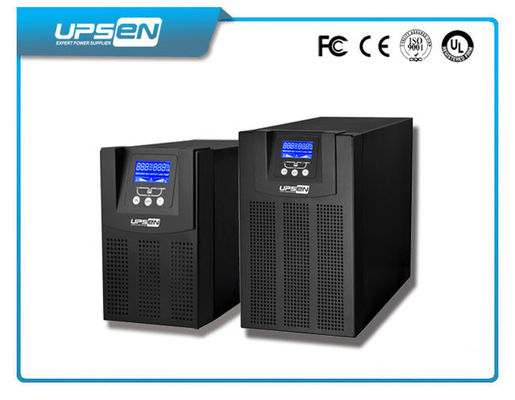

220V / 230V / 240Vac Online UPS Uninterruptible Power Supply 1 - 20Kva For Programmable Logic Controller
Model: High Frequency Online UPS Queen Star Series 1K-3Kva (1ph in/1ph out)
Quick Read
1.True double-conversion
2. DSP technology guarantees high performance
3. Output power factor 0.8
3. Wide input voltage range (110-300 VAC)
4: SNMP+USB+RS232 multiple communications port
Key Features:
DSP Technology
Environment Friendly
Active input power factor correction (PFC)
Widened range of input voltage and frequency
Zero power switch delay
Adaptive Load Management
Sufficient Expansion Slots
The load power factor is 0.8
Support the Generators
Large-screen LCD
UPS Application
Home, Office, Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom, Bank system, ATM, Computers, Railway, Weak electricity system integration, security system, CCTV, Army, Programmable Logic Controller (PLC), Direct Digital Controller, Building Automation System (BAS) etc.
Technical Specification
MODEL | Q1K | Q1KL | Q2K | Q2KL | Q3K | Q3KL | ||
Rated capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | |||||
Input | Voltage | 115 - 300Vac | ||||||
Frequency | 40-60Hz / 50-70Hz | |||||||
Power factor | 0.99 | |||||||
Output | Voltage | 220/230Vac(1±2%) | ||||||
Frequency |
Synchronize with utility power(utility mode); 50 / 60Hz ± 0.2Hz(battery mode) |
|||||||
On-load factor | 0.8 | |||||||
Overload rating | 125% overload,1min | |||||||
Battery | Type | Valve-control lead acid maintenance-free battery | ||||||
Back up time |
> 11min (half load) |
External |
> 11min (half load) |
External |
> 11min (half load) |
External | ||
Rated voltage | 36V | 72V | 96V | |||||
Transfer time | 0 | |||||||
Operating environment | Humidity: 20%-90%, Temperature:0oC-40oC | |||||||
Size (WxDxH)mm | 350 x 144 x 229 | 424 x 190 x 328 | 424 x 190 x 328 | |||||
Net Weight(kg) | 11.5 | 5.7 | 22.2 | 10 | 26.3 | 10 |
