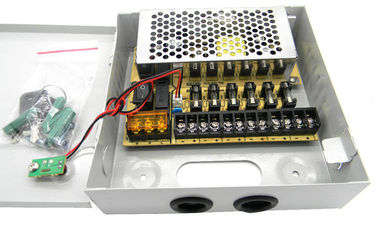

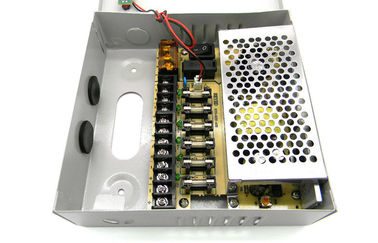

CCTV Camera Power Supply 12V 5Amps CCTV Power Supply Box 9 Channel ,

CCTV Camera Power Supply 12V 5Amps CCTV Power Supply Box 9 Channel ,

    • CCTV Camera   Power Supply  12V 5Amps CCTV Power Supply Box 9 Channel ,
    • CCTV Camera   Power Supply  12V 5Amps CCTV Power Supply Box 9 Channel ,
    • CCTV Camera   Power Supply  12V 5Amps CCTV Power Supply Box 9 Channel ,
    • CCTV Camera   Power Supply  12V 5Amps CCTV Power Supply Box 9 Channel ,
  • CCTV Camera   Power Supply  12V 5Amps CCTV Power Supply Box 9 Channel ,

    Szczegóły Produktu:

    Place of Origin: Shenzhen,China
    Nazwa handlowa: RAYTOP
    Orzecznictwo: CE, RoHS, FCC
    Model Number: ETB120509

    Zapłata:

    Minimum Order Quantity: 500 Pcs
    Cena: Negotiable
    Packaging Details: Inside white box/color box, outside master carton
    Delivery Time: 15-20 working days.
    Payment Terms: T/T, L/C
    Supply Ability: 200,000 Pcs monthly.
    Skontaktuj się teraz
    Szczegółowy opis produktu
    EMI: LEN55011 Class B|EN55022 Class B Approval: CE/UL
    Output: High Voltage|Regulated|LED|9 Channel Frequency: 50Hz / 60Hz
    Input: AC100-240V Feature: High Voltage|Regulated|LED|9 Channel
    Product Name: CCTV Power Supply Box Protection: Short Circuit|Over Voltage|Over Current
    Supply Current: 5Amp



    CCTV Camera Power Supply12V 5Amps CCTV Power Supply Box 9 Channel





    Quick Detail:



    -Absolutely Plug-and Play! Easy to operate even for one without any experience;

    -5 AMP 9 Channels 12V DC Regulated Distributed Power Supply Panel;

    -Support up 9 cameras, 9 Individually outlet pairs;

    -MAX Output Amperage: 1Amp/Channel with Auto-adaptive current protection;

    -Output Voltage: 12V DC;

    -Input Voltage: AC 100~120V(Auto-adaptive volt protection from AC 100V~240V);

    -Main power switch with Integral Surge Protection;

    -Individual LED power status indicator;

    -Individual PTC Output Protection;

    -An internal built on/off switch;





    Description:



    12VDC 5A 9CH for 9 Out premium CCTV power supply unit.

    The CCTV power supply is primarily designed for WUF-GV, PTZ and camera of CCTV system. It’s also used for access, building/house control, intrude alarm and other light-current. It is for desktop or wall-mounted installation.





    Applications:



    1) Suitable for industrial equipment, security monitoring.

    2) Suitable for LED billboard, LED lighting.

    3) Suitable for medical treatment, CCTV camera power supply.

    4) Widely used in any other area.





    Specifications:



    Max output power

    60W

    Input

    Input Voltage

    AC100-240V

    Input Voltage Frequency

    50/60Hz

    Input Current

    Max.1.3A

    Efficiency

    >85%

    Inrush Current

    Cold Start Curren 40A/240Vac

    Leakage Current

    <3.5mA/240VAC

    Output

    Output Voltage

    DC12V

    Total Output Current

    5A(500mA/Output, 9 Channels for 9 sets security camera)

    Output Ripple

    Noise(Vp-p)

    80mVp-p@25℃/

    Rated input voltage & Rated output load

    Fuse Type

    Glass fuse

    Fuse Rating

    1 Amps/250VAC

    Start time, rise time, hold on

    1000ms,30ms,50ms/240VAC.

    Protection

    Short Circuit Protection

    When short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically.

    High Voltage Protection

    When over voltage occurs, it will switch to self-protection status to

    protect the load.

    Over Current Protection

    When over current occurs,

    the corresponding

    channel output will automatically switch to self-protection status, and the other channels output will work normally. When the fault is cleared, it will switch back to normal.

    Circumstances

    Working Temperature

    0℃-+50℃

    Storage Temperature

    -20℃-+80℃

    RH

    20%-90%

    Heat Release

    Natural heat dissipation

    Dielectric strength

    Input to output

    1500Vac/60S  leakage current≤1.5mA

    Input to FG

    1500Vac/60S  leakage current≤2.0mA

    FG to output

    500Vac/60S   leakage current≤1.5mA

    Insulating Strength

    Input to output

    ≥20MΩ/500VDC@25℃

    RG

    ≤0.011Ω@DC8V/25A/25℃

    Safety EMC

    Safety Standards

    UI60950 EN60950

    EMI

    EN55011 class B

    EN55022 class B

    EMS Immunity

    EN55024 EN61000-6-2

    Harmonic Current

    EN61000-3-2





    Competitive Advantage:



    -100 ~ 240VAC Worldwide Input Voltage range;

    -Compact design, light weight and high efficiency;

    -Short Circuit Protection, Over Current Protection, Over Load Protection;

    -Customer design model;

    -Factory direct price w/o middle man;

    -0.3% backup of order quantity free of charge.
