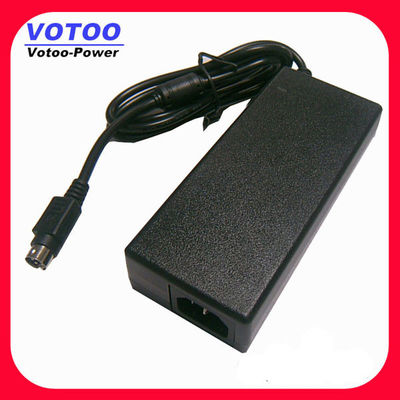

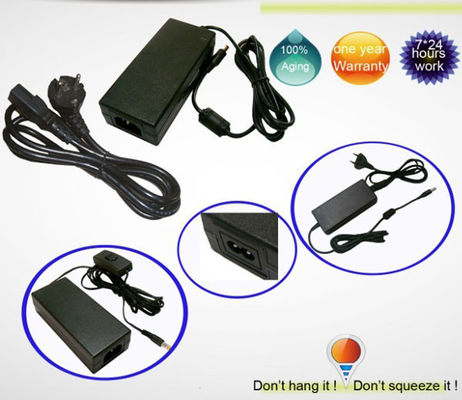

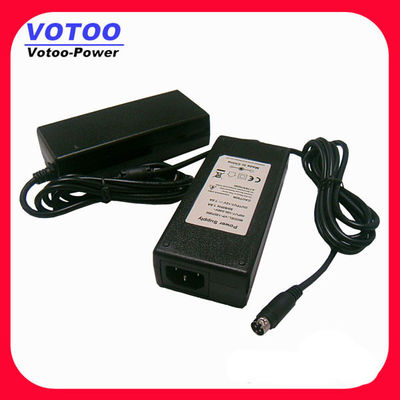

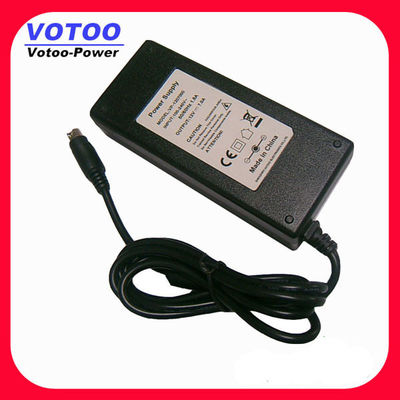

7A IP20 Plastic Slim Switching 12V Power Adapter For Laptop , Notebook Power Adapters

7A IP20 Plastic Slim Switching 12V Power Adapter For Laptop , Notebook Power Adapters

    • 7A IP20 Plastic Slim Switching 12V Power Adapter For Laptop , Notebook Power Adapters
    • 7A IP20 Plastic Slim Switching 12V Power Adapter For Laptop , Notebook Power Adapters
    • 7A IP20 Plastic Slim Switching 12V Power Adapter For Laptop , Notebook Power Adapters
    • 7A IP20 Plastic Slim Switching 12V Power Adapter For Laptop , Notebook Power Adapters
  • 7A IP20 Plastic Slim Switching 12V Power Adapter For Laptop , Notebook Power Adapters

    Szczegóły Produktu:

    Place of Origin: China
    Nazwa handlowa: VOTOO
    Orzecznictwo: CE,ROHS
    Model Number: VP-1207000

    Zapłata:

    Minimum Order Quantity: 100pcs
    Cena: negotiation
    Packaging Details: white box
    Delivery Time: 5-10 days
    Payment Terms: Ex works
    Supply Ability: 1, 000, 000PCS/week
    Skontaktuj się teraz
    Szczegółowy opis produktu

    7A IP20 Plastic Slim Switching 12V Power Adapter For Laptop , Notebook Power Adapters



    Quick Detail:



    1. Type: desktop type
    2. AC plug: EU,US,AUS,UK,CN etc.
    3. Dc plug: 5.5*2.1mm,5.5*2.5mm,3.5*1.35mm, micro/mini usb etc.
    4. No load power consumption< 0.3W
    5. 100% aging test before shipment
    6. Certificate: CE & RoHS
    7. OEM/ODM welcome




    Description:


    Features:



    o Universal Input 100~240VAC 50/60Hz

    o Small volume, light weight, high efficiency.

    o Cooling by free air convection.

    o 100% Full load burn-in test.

    o One year warranty.



    o Output Voltage: 12V

    o Output Current: 7A

    o Power: 84Watt

    o Ripple & Noise: 1% of Output Voltage

    o Leakage Current: 0.25mA

    o No load power Consumption

    o Working Temperature:0-40°C Max

    o Efficiency:86%Min



    Protections

    1)over voltage protection: 120%min
    2)over current protection: 120%min
    3)over protection



    4Short-circuit protection: automatic recovery ­

    5Load regulation: ±5%



    Environmental requirement





    1)operating temperature: 0-40
    2)storage temperature: -20-85
    3)opera ting relative humidity:595%RH
    4) Withstanding voltage: AC 3,000V (minimum), 5mA (maximum) ­

    5Insulation resistance: DC 500V 100MΩ (minimum) ­





    Weight: 380g

    Dimensions: 140*60.5*34.5mm



    1. AC input power suitable for the world2. Soft-start current can reduce the AC input impact efficiency

    3. With short-circuit and overload protection

    4. Compact size ,light weight

    5. 100%full-load burning test

    6. Installed with EMI filter ,minimum wave



    Specification:




    OUTPUT

    DC VOLTAGE

    12V

    OUTPUT POWER

    84W

    CURRENT RANGE

    7A



    INPUT

    VOLTAGE RANGE

    110VAC -264V AC

    FREQUENCY RANGE

    50-60Hz

    EFFICIENCY(Typ.)

    86%



    ENVIRONMENT

    WORKING TEMP.

    -0°C ~ +40°C (Refer to output load derating curve)

    STORAGE TEMP.,HUMIDITY

    -10°C ~ +70°C 10~95% RH

    COOLING METHOD

    BY FREE AIR CONVECTION





    How to Install?



    1. Before connecting check whether the power supply fullfields electrical specification (output voltage and current). Also check the socket type and its polarity.
    2. Connect power supply to the supplied unit.
    3. Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
    4. Do not install power supply in locations with high humidity, dust or strong direct sunlight.
    5. The power supply should be installed in a location with good airflow.
    6. Power supply can only be installed indoors.
    7. AC wire should connect tight with adapter socket, in case poor contact socket.



    Applications:



    1. CCTV security, door access, digital camera, etc.

    2. POS machine, mini printing machine, etc.

    3. Electronic scale, flowerpot etc.

    4. LED strip, LED lighting etc.



    7A IP20 Plastic Slim Switching 12V Power Adapter For Laptop , Notebook Power Adapters





    7A IP20 Plastic Slim Switching 12V Power Adapter For Laptop , Notebook Power Adapters
