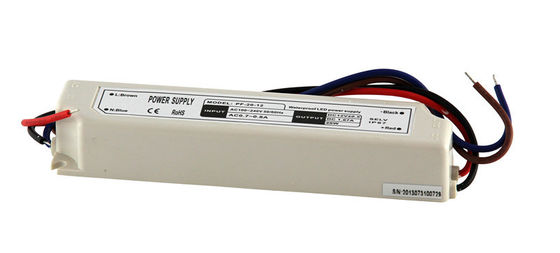

High Efficiency Constant Voltage LED Driver Single Output 20W Waterproof

Szczegóły Produktu:

Place of Origin:	China
Nazwa handlowa:	DongDaHua
Orzecznictwo:	CE,RoHS
Model Number:	PF-20-12

Zapłata:

Minimum Order Quantity:	10
Cena:	/
Packaging Details:	as for your requirement
Delivery Time:	as per your order quantity
Payment Terms:	TT,paypal
Supply Ability:	4000pcs/Day

Kontakt

Szczegółowy opis produktu

High Light:

waterproof led driver

constant voltage led drivers

High Efficiency Constant Voltage LED Driver Single Output 20W Waterproof

Quick detail:
Power: 20W
Input: AC170-264V
Output: DC 12V
Size: 139*30*20(mm)
Certificate: CE&ROHS
Warranty: 2 years

Description:

1. Protections :Short circuit/Overload/Over temperature
2. Cooling by free air convection
3. IP67 design for indoor or outdoor installations
4. 100% full load burn-in test
5. Suitable for LED lighting
6. Products through CE& ROHS certification
7. Two years warranty

Brightness 12V 24V 20W Constant Voltage LED Driver / Waterproof 12v LED Driver

Descriptions:

Parameter	Model: PF-20
DC output voltage	12V±5%	24V±5%
Rated output current	1.66A	0.83A
Output current range	0-1.66A	0-0.83A
Ripple and Noise	120mVp-p
DC output power	20W	202
Efficiency	85%	85%
Input voltage range	110-240V AC
Short-circuit protection	Damage free short-circuit protection 3 times or more with automatic restoration
Overload protection	105-150% hiccup with automatic restoration
Temp.coefficient	±0.03%℃ ( 0-40℃ )
Voltage tolerance	Input-output range: 1.5KvAC
Working environmental temp.	-10℃~+40℃
Waterproof grade	IP67
Input frequency range	47Hz~63Hz
Storage temperature	-20℃~+85℃
Dimension	1393022mm
weight	0.16 kg

Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
