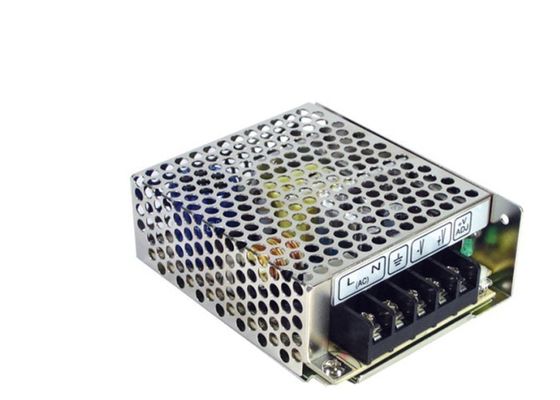

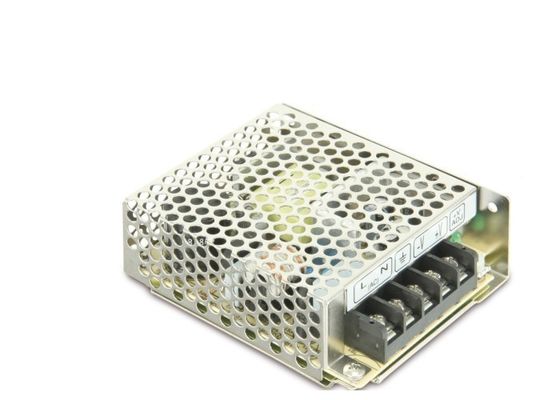

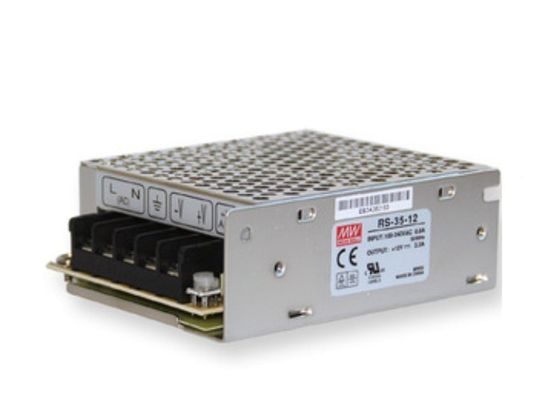

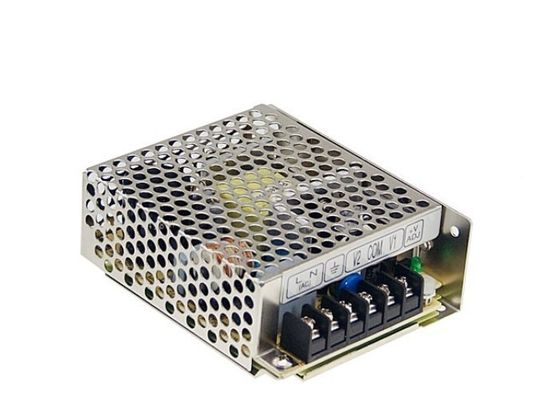

35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage

35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage

    • 35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage
    • 35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage
    • 35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage
    • 35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage
  • 35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage

    Szczegóły Produktu:

    Place of Origin: China
    Nazwa handlowa: Meanwell
    Orzecznictwo: CE,ROHS, TUV, UL
    Model Number: RS-35 Single Output Switching Power Supply

    Zapłata:

    Minimum Order Quantity: Negotiable
    Cena: Negotiable
    Packaging Details: Export Standard Packaging
    Delivery Time: 5-7 work days after receiving deposit
    Payment Terms: Ex works
    Supply Ability: 30000pcs/month
    Skontaktuj się teraz
    Szczegółowy opis produktu
    DIMENSION: 99*82*36mm (L*W*H) PACKING: 0.3Kg; 45pcs/14Kg/0.83CUFT
    Product Type: Meanwell RS-35 Series Switching Power Adapter DC Voltage: 3.3V, 5V, 12V, 15V, 24V, 48V
    Overload protection: 110%~150% hiccup mode, auto-recovery (150% ~190% for RID-125-1205/2405) WORKING HUMIDITY: 20 ~ 90% RH non-condensing
    SAFETY STANDARDS: UL60950-1, TUV EN60950-1 approved WORKING TEMP.: -25 ~ +70 (Refer to "Derating Curve")

    35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage





    G3 Series RS-35 Enclosed Switching Power Supply Features:

    1. Universal AC input / Full range
    2. Protections: Short circuit / Over load / Over voltage
    3. Cooling by free air convection
    4. LED indicator for power on
    5. 100% full load burn-in test

    6. No load power consumption <0.5W
    7. All using 105 celsius long life electrolytic capacitors
    8. Withstand 300VAC surge input for 5 second
    9. High operating temperature up to 70
    10. Withstand 5G vibration test
    11. High efficiency, long life and high reliability
    12. 3 years warranty



    Meanwell G3 Series AC Switching Power Adapter:

    RS-15 / RS-25 / RS-35 / RS-50 / RS-75 / RS-100 / RS-150

    RD-35 / RD-50 / RD-65 / RD-85 / RD-125

    RID-50 / RID-65 / RID-85 / RID-125, RT-50 / RT-65 / RT-85 / RT-125

    RQ-50 / RQ-65 / RQ-85 / RQ-125





    Quick Details:

    35W - Single Output
    Model No. Output Tol. R&N Effi.
    RS-35-3.3 3.3V, 0~7.0A ±3% 80mV 76.5%
    RS-35-5 5V, 0~7.0A ±2% 80mV 80.5%
    RS-35-12 12V, 0~3.0A ±1% 120mV 84.5%
    RS-35-15 15V, 0~2.4A ±1% 120mV 86.0%
    RS-35-24 24V, 0~1.5A ±1% 200mV 88.0%
    RS-35-48 48V, 0~0.8A ±1% 200mV 88.5%



    General Specifications:

    Model No. RS-35
    RD-35
    AC input voltage range 85~264VAC, 120~373VDC
    AC inrush current (max.) 36A at 230VAC
    DC adjustment range

    ±10% by potentiometer for single output;

    CH1 -5%~+10% by potentiometer for multiple output

    Overload protection 110%~150% hiccup mode, auto-recovery (150% ~190% for RID-125-1205/2405)
    Over voltage protection 115%~135% rated output voltage, hiccup mode, auto-recovery
    Withstand voltage I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
    Working temperature -25~+70°C (refer to the derating curve for different models)
    Vibration

    10~500Hz, 5G 10min. /1 cycle, period for 60 min.

    each along X, Y, Z axes

    Safety standards UL60950-1, TUV EN60950-1 approved
    EMC standards

    EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,

    EN61000-6-2 (EN50082-2) (35~150W)

    Connection Terminal block for input and output
    Dimension (LxWxH)(mm) 99x 82x 36
    Case No. 932A
    Packing 45pcs /14.0kg



    NOTE:

    1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 celsius of ambient temperature.

    2. Ripple & noise are measured at 20MHz of bandwidth by using a 12'' twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

    3. Tolerance: includes set up tolerance, line regulation and load regulation.

    4. Line regulation is measured from low line to high line at rated load.

    5. Load regulation is measured from 0% to 100% rated load.

    6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, you can refer to "EMC testing of component power supplies" or contact our sales.



    35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage

    35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage







    Meanwell AC Switching Power Supply of Our Product Range:

    G3 Series

    NE Series

    SE Series

    LRS Series



    Your inquiries are highly welcome!
