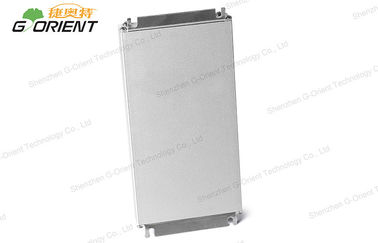

Single Output High Power Switching Power Supply Universal 200W for Car LED Display

Single Output High Power Switching Power Supply Universal 200W for Car LED Display

Single Output  High Power Switching Power Supply Universal 200W for Car LED Display

Szczegóły Produktu:

Place of Origin: China
Nazwa handlowa: G-ORIENT
Orzecznictwo: ISO9001 / CE / ROHS / FCC
Model Number: NHD200-5-E

Zapłata:

Minimum Order Quantity: 10pcs
Cena: negotiable
Packaging Details: 20pcs/12Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, Western Union, L/C
Supply Ability: 50,000pcs per month
Skontaktuj się teraz
Szczegółowy opis produktu
Size: 168*80*18mm High efficiency: 94%
Application: On-board screen, Taxi LED sign Standard: CE / ROHS / FCC
Output power: 200W Input: 9-36V DC
Output: 5V DC / 40A Operating temperature: -30℃ ~ +60℃



Single Output  High Power Switching Power Supply Universal 200W for Car LED Display


Competitive Advantage:
* The two level output over voltage protection
* Output over-current,short-circuit,over-load,over-voltage protection
* Ultra-thin 18mm
* High efficiency up to 94%
* CE / ROHS / FCC approval* Low output ripple and noise


Applications:
This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.


Specifications:

Switching power supply

 NHD-200-5E

 OUTPUT

DC Voltage

 5V

Current Range

 0~40A

Rated Current

 40A

Rated Power

 200W

Ripple & Noise(max.)

 <100mVp-p

Voltage set point accuracy

 +/- 3.0%Vo max

Over-current protection

 >120%io,hiccup

Line Regulation

 0.2%Vo max

Load Regulation

 0.2%Vo max

Short-circuit protection

 Hiccup

Hold up time

 >8mS

Overshoot and undershoot

 < +/- 5.0%

 INPUT

Voltage Range

 DC9-36V

Frequency Range

 BW=20MHz

Efficiency(Typ.)

 94%

DC Current

 <25A

Inrush Current(Typ.)

 100A at DC Cold start

Leakage Current

 Input-Output< 0.2mA ; Input-PG:<0.3mA

 Environment

MIBF

 >2 million hrs

Temp.Coefficient

 < 0.02%/℃

Storage Temperature range

 -55 ~ +115℃

Operaing board Temperature range

 -25 ~ +65℃

 Safety

Safety standards

 CE

Withstand Voltage

 DC40V

 Others

Dimension

 168*80*18mm (L*W*H)

Packing

 0.6kg; 20pcs/12Kgs



Features:
* Input reverse connect protection
* High efficiency 94% & small size
* Low output ripple and noise
* Through the EMC certification
* Aluminum metal shell,natural cooling
* 2 years warranty
* To prevent car screen flower screen, the splash screen and two horizontal line design





Company Advantage:
1. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
2. Your inquiry related to our products or price will be replied in 24hrs
3. Distributorship are offered for your unique design and some our current models
4. OEM&ODM,any your customized lightings we can help you to design and put into product
5. Protection of your sales area,ideas of design and all your private information
