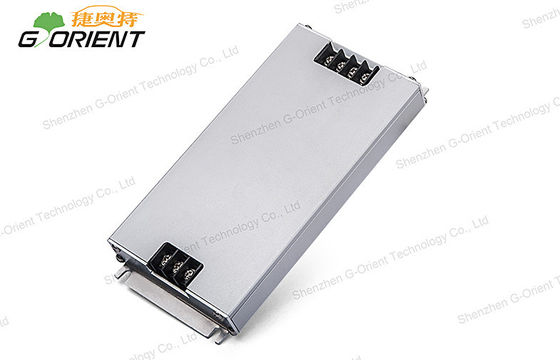

Car LED Display Single Output Switching Power Supply DC4.5V 40A Elegant Design

Car LED Display Single Output Switching Power Supply DC4.5V 40A Elegant Design

Car LED Display Single Output Switching Power Supply DC4.5V 40A Elegant Design

Szczegóły Produktu:

Place of Origin: China
Nazwa handlowa: G-ORIENT
Orzecznictwo: ISO9001 / CE / ROHS / FCC
Model Number: NHD200-4.5-E

Zapłata:

Minimum Order Quantity: 10pcs
Cena: negotiable
Packaging Details: 20pcs/12Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
Skontaktuj się teraz
Szczegółowy opis produktu
Product Name: Single output switching power supply Size: 168*80*18mm
Output power: 180W High efficiency: 94%
Input: 9-36V DC Output: 4.5V DC / 40A
Application: Indoor Ripple & Noise: ≤100mVp-p
Standard: CE / ROHS / FCC





Car LED Display Single Output Switching Power Supply DC4.5V 40A Elegant Design





Features:

* To prevent car screen flower screen, the splash screen and two horizontal line design

* Through the EMC certification

* 2 years warranty

* Input reverse connect protection

* Aluminum metal shell,natural cooling

* High efficiency 94% & small size

* Low output ripple and noise





Applications:

1. Automobile

2. Ship

3. Electric cars

4. New energy products

5. LED electronic signs

6. Car audio board

7. Other energy-saving appliances





Specifications:

Switching power supply

 NHD-200-4.5E

 OUTPUT

DC Voltage

 4.5V

Current Range

 0~20A x 2

Rated Current

 40A (2 independent output)

Rated Power

 180W

Ripple & Noise(max.)

 <200mVp-p

Voltage set point accuracy

 +/- 3.0%Vo max

Over-current protection

 >120%io,hiccup

Line Regulation

 0.2%Vo max

Load Regulation

 0.2%Vo max

Short-circuit protection

 Hiccup

Hold up time

 >8mS

Overshoot and undershoot

 < +/- 5.0%

 INPUT

Voltage Range

 DC9-36V

Frequency Range

 BW=20MHz

Efficiency(Typ.)

 94%

DC Current

 <25A

Inrush Current(Typ.)

 100A at DC Cold start

Leakage Current

 Input-Output< 0.2mA ; Input-PG:<0.3mA

 Environment

MIBF

 >2 million hrs

Temp.Coefficient

 < 0.02%/℃

Storage Temperature range

 -55 ~ +115℃

Operaing board Temperature range

 -25 ~ +65℃

 Safety

Safety standards

 CE

Withstand Voltage

 DC40V

 Others

Dimension

 152*100*18mm (L*W*H)

Packing

 0.6kg; 20pcs/12Kgs





Competitive Advantage:

* Low output ripple and noise

* CE / ROHS / FCC approval

* Output over-current,short-circuit,over-load,over-voltage protection

* Ultra-thin 18mm

* High efficiency up to 94%

* The two level output over voltage protection





Company Advantage:

* Short lead time

* Professional R&D team

* High quality products

* Standardized production process
