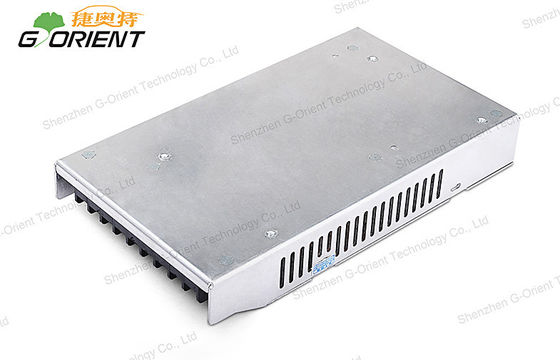

High Reliability Converter AC to DC Industrial Power Supply 168 Watts 4.2V / 40A

High Reliability Converter AC to DC Industrial Power Supply 168 Watts 4.2V / 40A

  • High Reliability Converter AC to DC Industrial Power Supply 168 Watts 4.2V / 40A
  • High Reliability Converter AC to DC Industrial Power Supply 168 Watts 4.2V / 40A
High Reliability Converter AC to DC Industrial Power Supply 168 Watts 4.2V / 40A
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: G-ORIENT
Orzecznictwo: ISO9001 / CE / ROHS / FCC
Model Number: NHI200-4.2-A
Zapłata:
Minimum Order Quantity: 10pcs
Cena: negotiable
Packaging Details: 20pcs/16Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, Western Union, L/C
Supply Ability: 50,000pcs per month
Kontakt
Szczegółowy opis produktu
High efficiency: 83% Ripple & Noise: ≤250mVp-p
Output: 4.2V DC / 40A Input: 200-240V DC
Size: 190*85*30mm Output Power: 168W
High Light:

constant voltage power supply

,

indoor power supply



High Reliability Converter AC to DC Industrial Power Supply 168 Watts 4.2V / 40A ​



Applications:
* urban landscape lighting
* LED Lighting
* Stage
* Military project
* Communication security equipment
* indoor and outdoor advertising screens
* New energy and other Various industries


Features:
* Protections:Short circuit / Overload / Over voltage / Over temperature
* Low cost,high reliability
* 2 years warranty
* AC input range selectable by switch
* Withstand 300vac surge input for 5 second


Competitive Advantage:
* High efficiency up to 83%
* Ultra-low start up temp.(- 30℃)
* Ultra-thin 30mm
* Protections:Short circuit / Overload / Over voltage / Over temperature
* Small size,ultra-light and easy to install
* CE / ROHS / FCC approval


Specifications:

Switching power supply

 NHI200-4.2-A

 OUTPUT

DC Voltage

 4.2V

Current Range

 0~40A

Rated Current

 40A

Rated Power

 168W

Ripple & Noise(max.)

 <250mVp-p

Voltage ADJ.Range

 3.78~4.62V

Voltage Tolerance

 +/- 2.0%

Line Regulation

 +/- 0.5%

Load Regulation

 +/- 1.0%

Setup,Rise Time

 1000ms,50ms/230VAC

Hold up time

 20ms/230VAC

 INPUT

Voltage Range

 200-240VAC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 83-88%

AC Current

 2.5A/230VAC

Inrush Current(max.)

 55A/230VAC

Leakage Current

 < 3.5mA /240VAC

 Protection

Over Load

 105 ~ 150% rated output power

 Protection type: Constant current limiting,recovers   automatically after fault condition is removed

Over Voltage

 4.83 ~ 5.88V

 Protection type: Shut down O/P voltage,re-power on to recover

Over Temperature

 100℃ +/- 5℃

 Protection type: Shut down O/P voltage,recovers automatically after temperature goes down

 Environment

Working Temp.

 -40 ~ +60℃ (Refer to output load derating curve)

Working Humidity

 20 ~ 90% RH, non-condensing

Storage Temp., Humidity

 -40 ~ +85℃, 10 ~ 95% RH

Temp.Coefficient

 +/-0.03%/℃ (0 ~ 50℃)

Vibration

 10 ~ 500Hz, 5G 10min./1 cycle,60min. Each along X, Y, Z axes

 Safety

Safety standards

 UL60950-1 approved

Withstand Voltage

 I/P-O/P:3KVAC  I/P-FG:1.5KVAC   O/P-FG:0.5KVAC

Isolation Resistance

 I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH

 Others

MTBF

 271.9K hrs min. MIL-HDBK-217F(25℃)

Dimension

 190*85*30mm (L*W*H)

Packing

 0.8kg; 20pcs/16Kgs

 Note

1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20Mhz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor.

3. Tolerance: includes set up tolerance,line regulation and load regulation.

4. Please connect positive pole of input voltage with mark”L” of terminal block,connect negative pole of input voltage with mark”N” of terminal block,using DC voltage for input voltage
