DC-DC Buck Converter Step Down Module , IC Module LM2596 Power Supply Output 1.23V-30V

Szczegóły Produktu:

Place of Origin:	guangdong
Nazwa handlowa:	dewang
Orzecznictwo:	ce
Model Number:	Z0039

Zapłata:

Minimum Order Quantity:	50 pcs
Cena:	$1.14
Packaging Details:	15cm x 15cm x 3cm (5.91in x 5.91in x 1.18in)
Delivery Time:	5days
Supply Ability:	3,0000 pcs per month

Kontakt

Szczegółowy opis produktu

High Light:	chip module

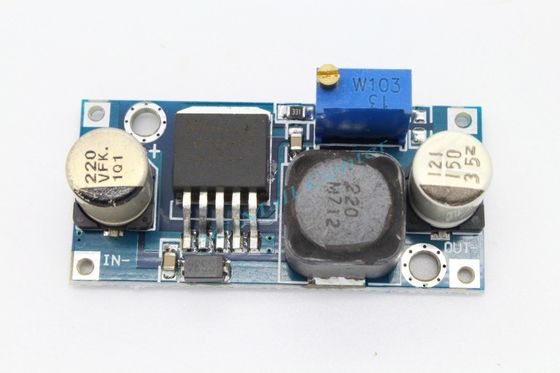

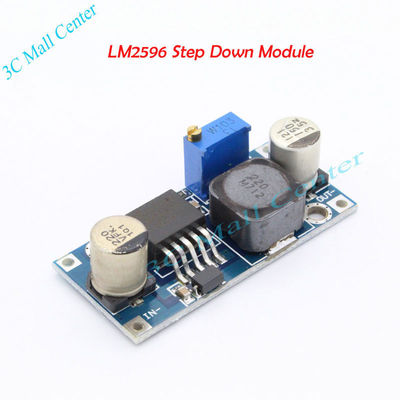

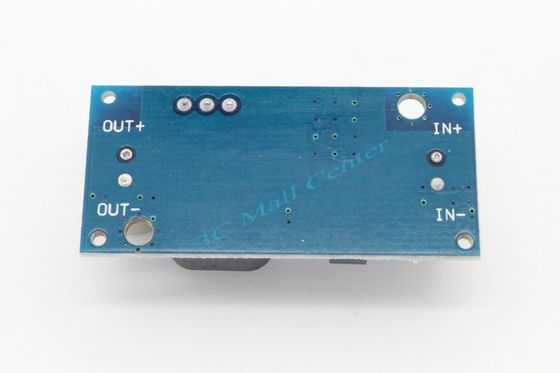

LM2596 DC-DC 3.2-40V Adjustable Step-down Power Supply Module

Description:

Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short circuit protection: current limiting, since the recovery
Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
Full load temperature rise: 40
Load regulation: ± 0.5%
Voltage regulation: ± 2.5%
Dynamic response speed: 5% 200uS
Input voltage:3.2-40V
3.2-40VOutput voltage:1.5-35V(Adjustable)
Output current:Rated current is 2A,maximum 3A(Additional heatsink is required)
Dimension:43*20*14mm(L*W*H)

1x DC-DC Buck Converter Step Down Module LM2596 Power Supply Output 1.23V-30V
