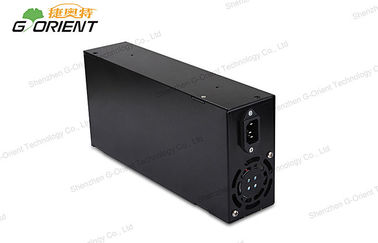

600 Watts Single Output AC DC Converter 12V 50A Switching Power Supply

600 Watts Single Output AC DC Converter 12V 50A Switching Power Supply

600 Watts Single Output AC DC Converter 12V 50A Switching Power Supply

Szczegóły Produktu:

Place of Origin: China
Nazwa handlowa: G-ORIENT
Orzecznictwo: ISO9001 / CE / ROHS / FCC
Model Number: NHI600-12

Zapłata:

Minimum Order Quantity: 10pcs
Cena: negotiable
Packaging Details: 10pcs/21Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
Skontaktuj się teraz
Szczegółowy opis produktu
High efficiency: 81% Application: Indoor
Operating temperature: -40℃ ~ +60℃ IP Grade: IP20
Case material: Metal, aluminium Output power: 600W
Input: 200-240V AC Output: 12V DC / 50A





600 Watts Single Output AC DC Converter 12V 50A Switching Power Supply





Features:
Protections:Short circuit / Overload / Over voltage / Over temperature
* Built-in constant current limiting circuit
* Low cost,high reliability
* 2 years warranty





Applications:
* Products can be used to street lamps, lawn lamps, sunlight lamps, LED lighting
* Adornment: LED lamp, LED luminaire , LED strips, LED screens, advertisement screens
* Industrial electrical products, machinery and electrical equipment, security system, air purifier





Specifications:

Switching power supply

 NHI600-12

 OUTPUT

DC Voltage

 12V

Current Range

 0~50A

Rated Current

 50A

Rated Power

 600W

Ripple & Noise(max.)

 <150mVp-p

Voltage ADJ.Range

 10~13.5V

Voltage Tolerance

 +/- 1.0%

Line Regulation

 +/- 0.5%

Load Regulation

 +/- 0.5%

Setup,Rise Time

 1000ms,50ms/230VAC

Hold up time

 20ms/230VAC

 INPUT

Voltage Range

 200-240VAC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 83-88%

AC Current

 7.5A/230VAC

Inrush Current(max.)

 60A/230VAC

Leakage Current

 < 2.0mA /240VAC

 Protection

Over Load

 105 ~ 125% rated output power

 Protection type: Constant current limiting,recovers automatically after fault condition is removed

Over Voltage

 13.8~ 16.2V

 Protection type: Shut down O/P voltage,re-power on to recover

Over Temperature

 85℃ +/- 5℃

 Protection type: Shut down O/P voltage,recovers automatically after temperature goes down





 Environment

Working Temp.

 -40 ~ +60℃ (Refer to output load derating curve)

Working Humidity

 20 ~ 90% RH, non-condensing

Storage Temp., Humidity

 -40 ~ +85℃, 10 ~ 95% RH

Temp.Coefficient

 +/-0.05%/℃ (0 ~ 50℃)

Vibration

 10 ~ 500Hz, 2G 10min./1 cycle,60min. Each along X, Y, Z axes

 Safety

Safety standards

 UL60950-1 approved

Withstand Voltage

 I/P-O/P:3KVAC  I/P-FG:1.5KVAC   O/P-FG:0.5KVAC

Isolation Resistance

 I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH

 Others

MTBF

 >197K hrs min. MIL-HDBK-217F(25℃)

Dimension

 260*140*65mm (L*W*H)

Packing

 2.1kg; 10pcs/21Kgs

 Note

1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20Mhz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor.

3. Tolerance: includes set up tolerance,line regulation and load regulation.









Competitive Advantage:
* Ultra-low start up temp.(- 20℃)
* High efficiency up to 85%
* Small size,ultra-light and easy to install
* CE / ROHS / FCC approval
* 2-3 years warranty

* Protections:Short circuit / Overload / Over voltage / Over temperature



Company Advantage:
* High quality products
* Short lead time
* Professional R&D team
* Standardized production process
