|Gaoxin Industrial Park, Guangming New Zone, Shenzhen w prowincji Guangdong, Chiny||Angelwang66@126.com|
|Place of Origin:||China|
|Model Number:||AGW1 /AGW2|
|Minimum Order Quantity:||1|
|Delivery Time:||30 days|
|Welding head:||1 or 2||Welding power:||DC-1000|
|Power Brand:||Lincoln USA||Flux recovery:||included|
AGW1 Electric Girth Welding Machine , Girth Automatic Tank Welder
Main Technical Parameters
Up Parameters may be special produce according to the customer need.
8 m and over for AGW-2
AGW2 Double side: 11 ( 2 Flux recovery ,frame moving)
AGW2 Double side: 1800
Welding Power: WE MAY SUPPLY OR CUSTOMER PREPARE
Main Technical Features
The information contained in this brochure is intended to be accurate.
Standard package includes
a) Heavy duty motorized carriage with frequency driver for speed regulation. ( Two motors drive the frame upper edge of the tank )

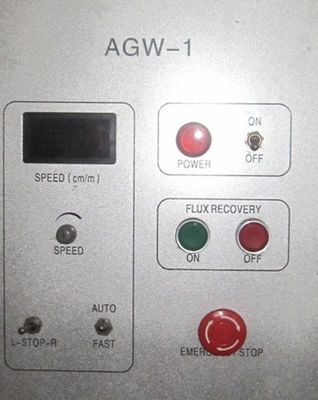

b) Control box for speed adjustment: forward, reverse and stop. Digital display in mm/min.
c) Flux recovery system with flux belt assembly.
d) Manual welding head X-Y-Z dimensions slide .
e) Operator seat with tool box.
f) Power source storage: 1300 mm (L)*1200 mm (W) *1400 mm (H).(Put the DC1000 power in it)
g) Power cables: 2.5 mm² @ 3 Nos, 60 m, Control cables, 60 m, Welding cable 120 mm², 60 m, -----When we supply the DC1000 power,we will supply these cables.
h) Several items: wire reel for 60 lbs coil, electric lifting pulley (100 kilograms @ 30 m from the ground), control, lamp and plug-in for electrical tools.
i) Operation Manual and Electric Diagram.
j) One year Warranty
Optional: we want to weld the bottom plate fillet welds, you may choose the Lincoln LT-7 Tractor magnetic device:

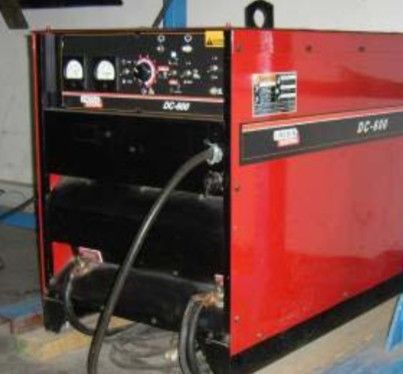

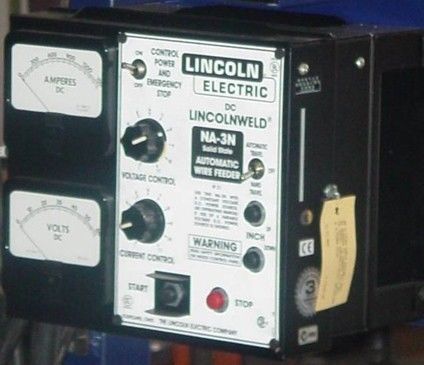

Arc Welding Equipment: Lincoln DC 1000, Lincoln Head Controller NA3S, Lincoln Head wire,feeder NA3S, and accessories.
Device for Lincoln LT-7 Tractor is used when is not enough support for both wheels at the rear of the tractor. Magnetic device allow to use LT-7 for apply SAW on external fillet welds on storage tanks with outside diameters larger than 4.8 m and with base plate flange extension over 76 mm
AGW---automatic girth welder

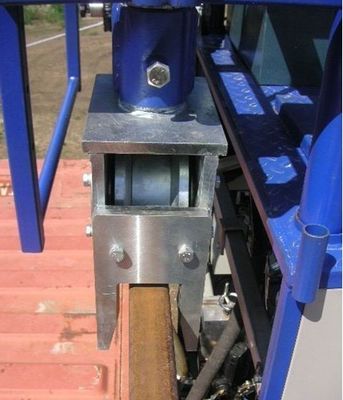

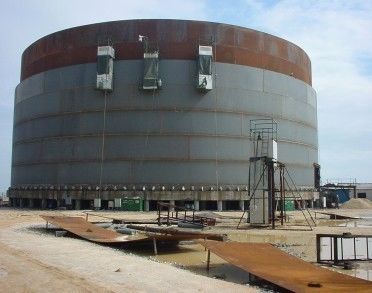

This machine is a self around monving frame beside the girth tank. It is designed to apply efficient horizontal seam welds (adopt Submerged Arc Welding)on large field erected storage tanks.It may ride along the upper tank edge.
