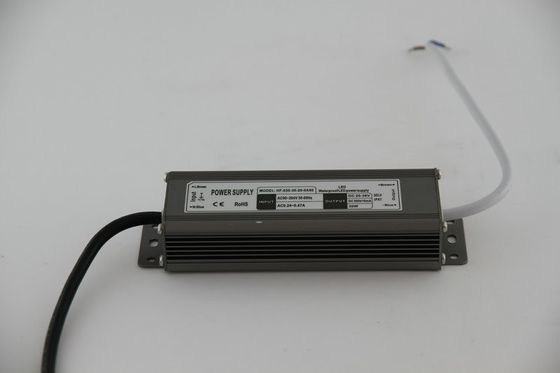

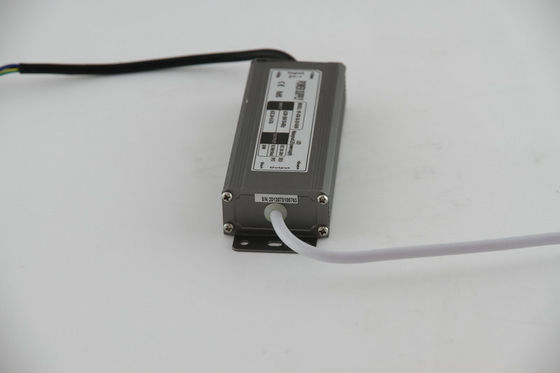

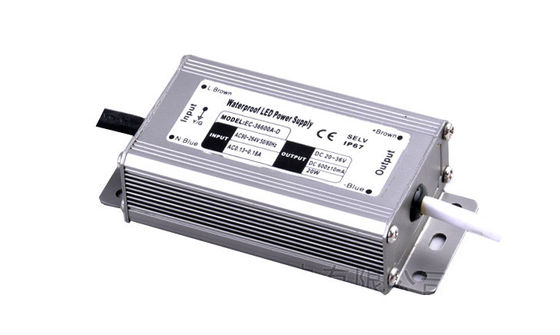

IP67 900mA Single Output Constant Current LED Driver 30W , 20V DC Waterproof LED Driver

Szczegóły Produktu:

Place of Origin:	China
Nazwa handlowa:	DongDaHua
Orzecznictwo:	CE RoHS
Model Number:	HF-030-36-20-0A90

Zapłata:

Minimum Order Quantity:	10
Cena:	/
Packaging Details:	as per your request
Delivery Time:	3-7 days on averange
Payment Terms:	TT;Paypal
Supply Ability:	3000pcs/Day

Kontakt

Szczegółowy opis produktu

Product Name:	Constant Current LED Driver	Output Dc Voltage:	20~36V
Output Rated Current:	900mA	Output Rated Power:	30W
Input Voltage Range:	110~250VAC	Input Frequency Range:	47~60Hz
High Light:	constant current Source led driver , constant current led drivers

IP67 Overload Constant Current LED Driver 30W 900mA

Quick detail:

Power: 30W

Input: AC110-264V

Output: DC 12V 24V

Size: 152*50*25

Certificate: CE&ROHS

Warranty: 2 years

Description:

1. Protections :Short circuit/Overload/Over temperature

2. Cooling by free air convection

3. IP67 design for indoor or outdoor installations

4. 100% full load burn-in test

5. Suitable for LED lighting

6. Products through CE& ROHS certification

7. Two years warranty

Specifications:

Model		HF-030-36-20-0A90
Output	Dc Voltage	20~36V±5%
	Rated Current	900mA
	Rated Power	30W
	Ripple&Noise(Max)	180mV
	Voltage Tolerance	±10mA
	Setup,Rise Time	100ms/220VAC
	Hold Up Time(Typ.)	80ms/220VAC
Input	Voltage Range	110~250VAC
	Frequency Range	47~60Hz
	Power Factor(Typ)	PF>0.5/220VAC
	Efficiency(Typ)	83%
	Ac Current(Typ)	0.3A/235V
	Inrush Current(Typ)	Cold-start current 0.9A/235V
Protection	Short Circuit	Protection type:recovers automatically after fault conditions is removed
	Overlaod	Overload protection@145~160%above peak rating
	Over Temperature	protection typer:shut down o/p voltage.re-power on to recover
Environment	Working Temp	-30~ +60℃(Refer to output load derating curve)
	Working Humidity	20~90%RH no-condensing (Waterproof)
	Storage Temp Humidity	-40~ +80℃,10~90%RH
Safety&Emc	Safety Standards	CE Mark(LVD),IP67
	Withstand Voltage	I/P-O/P:1.5KVAC IP-GND:1.5KVAC
	Emc Test Standards	EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005 EN 61347-1:2008 EN 61347-2-13:2006
NOTE	1.All parameters NOT specially mentioned are measured at 220VAC input,rated laod and 25℃ of ambient temperature.
	2.Ripple&noise are measured at 20MHz of bandwidth by using a12''twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
	3.Tolerance:includes set up tolerance,line regulation and load regulation.

Features:

Universal AC input/Full range
Protections: Short circuit/OLP/OVP
Meet EMC standards
100% full load burn-in test
High efficiency,long life and high reliability
IP67 design for indoor and outdoor

IP67 900mA Single Output Constant Current LED Driver 30W , 20V DC Waterproof LED Driver

Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

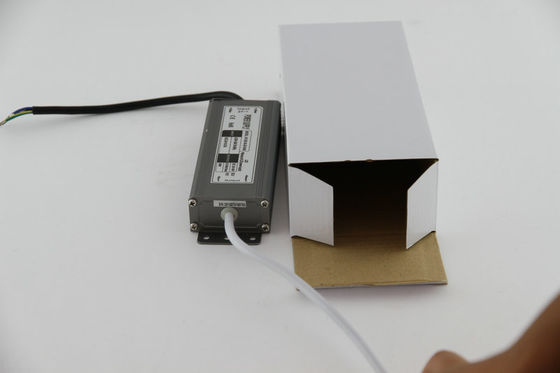

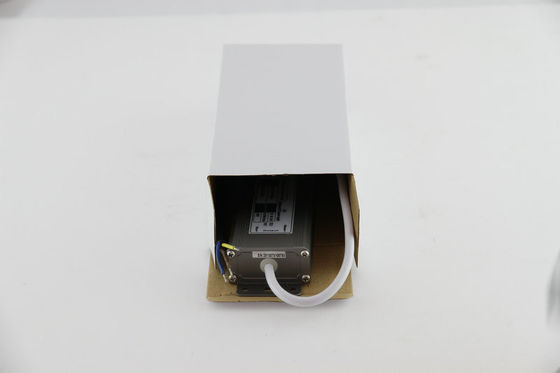

Quality assurance:

IP67 900mA Single Output Constant Current LED Driver 30W , 20V DC Waterproof LED Driver 0
