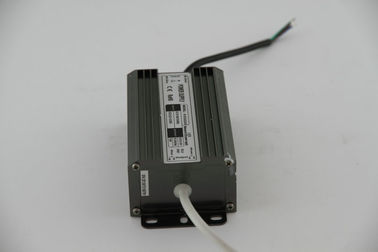

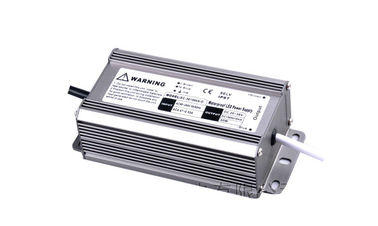

Universal AC 220V 70W Constant Current LED Driver 2100mA For LED Display

Universal AC 220V 70W Constant Current LED Driver 2100mA For LED Display

    • Universal AC 220V 70W Constant Current LED Driver 2100mA For LED Display
    • Universal AC 220V 70W Constant Current LED Driver 2100mA For LED Display
    • Universal AC 220V 70W Constant Current LED Driver 2100mA For LED Display
    • Universal AC 220V 70W Constant Current LED Driver 2100mA For LED Display
    • Universal AC 220V 70W Constant Current LED Driver 2100mA For LED Display
  • Universal AC 220V 70W Constant Current LED Driver 2100mA For LED Display

    Szczegóły Produktu:

    Place of Origin: China
    Nazwa handlowa: DongDaHua
    Orzecznictwo: CE RoHS
    Model Number: HF-070-36-20-2A10

    Zapłata:

    Minimum Order Quantity: 10
    Cena: /
    Packaging Details: as per your request
    Delivery Time: 3-7 days on averange
    Payment Terms: TT;Paypal
    Supply Ability: 3000pcs/Day
    Skontaktuj się teraz
    Szczegółowy opis produktu
    Product Name: Constant Current LED Driver Output Dc Voltage: 20~36V
    Output Rated Current: 2100mA Output Rated Power: 75.6W
    Input Voltage Range: 110~250VAC Input Frequency Range: 47~60Hz


    Universal AC input Constant Current LED Driver 70W 2100mA


    Quick detail:

    Power: 70W

    Input: AC110-264V

    Output: DC 12V 24V

    Size:  221*30*20

    Certificate: CE&ROHS

    Warranty: 2 years



    Description:

    1. Protections :Short circuit/Overload/Over temperature

    2. Cooling by free air convection

    3. IP67 design for indoor or outdoor installations

    4. 100% full load burn-in test

    5. Suitable for LED lighting

    6. Products through CE& ROHS certification

    7. Two years warranty





    Specifications:


    Model HF-070-36-20-2A10
    Output Dc Voltage 20~36V±5%
    Rated Current 2100mA±5%
    Rated Power 75.6W
    Ripple&Noise(Max) 200mV
    Current Tolerance ±20mA
    Setup,Rise Time 100ms/220VAC
    Hold Up Time(Typ.) 80ms/220VAC
    Input Voltage Range 110~250VAC
    Frequency Range 47~60Hz
    Power Factor(Typ) PF>0.5/220VAC
    Efficiency(Typ) 84%
    Ac Current(Typ)  0.5A/235V
    Inrush Current(Typ) Cold-start current 2.1A/235V
    Protection Short Circuit Protection type:recovers automatically after fault conditions is removed
    Overlaod Overload protection@145~160%above peak rating
    Over Temperature protection typer:shut down o/p voltage.re-power on to recover
    Environment Working Temp -30~ +60℃(Refer to output load derating curve)
    Working Humidity 20~90%RH no-condensing (Waterproof)
    Storage Temp Humidity -40~ +80℃,10~90%RH
    Safety&Emc Safety Standards CE Mark(LVD),IP67
    Withstand Voltage I/P-O/P:1.5KVAC   IP-GND:1.5KVAC
    Emc Test Standards EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005
    EN 61347-1:2008 EN 61347-2-13:2006
    NOTE 1.All parameters NOT specially mentioned are measured at 220VAC input,rated laod and 25℃ of ambient temperature.
    2.Ripple&noise are measured at 20MHz of bandwidth by using a12''twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
    3.Tolerance:includes set up tolerance,line regulation and load regulation.



    Application:
    It’s suitable for an extremely wide range of applications, including:
    LED, CCTV camera;
    Communications and security products;
    LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.


    Universal AC 220V 2100mA Constant Current LED Driver 70W For LED Display



    Features:

    Universal AC input/Full range
    Protections: Short circuit/OLP/OVP
    Meet EMC standards
    100% full load burn-in test
    High efficiency,long life and high reliability
    IP67 design for indoor and outdoor



    Quality assurance:

    Universal AC 220V 70W Constant Current LED Driver 2100mA For LED Display

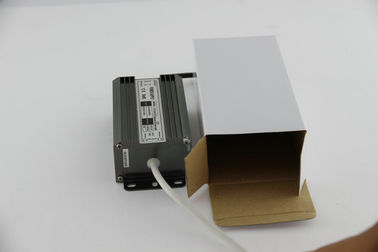

    Delivery:


    Universal AC 220V 70W Constant Current LED Driver 2100mA For LED Display
