100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver

100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver

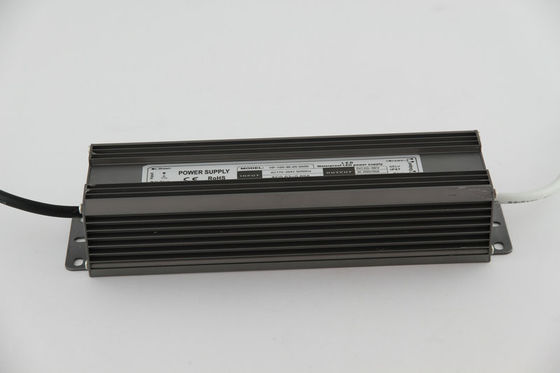

  • 100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver

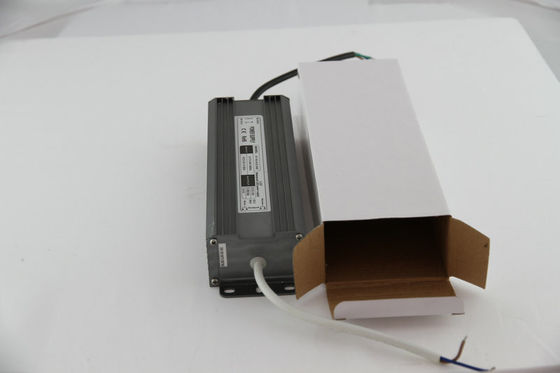

  • 100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver

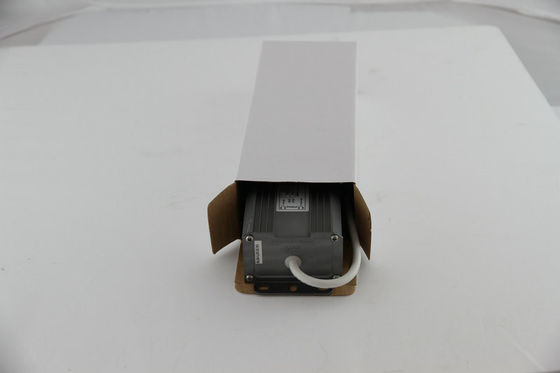

  • 100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver

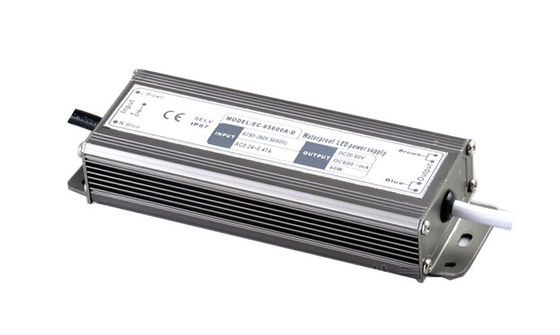

  • 100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver

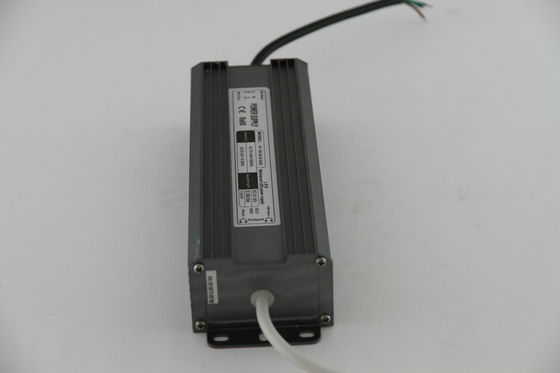

  • 100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver
100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: DongDaHua
Orzecznictwo: CE RoHS
Model Number: HF-100-36-20-3A00
Zapłata:
Minimum Order Quantity: 10
Cena: /
Packaging Details: as per your request
Delivery Time: 3-7 days on averange
Payment Terms: TT;Paypal
Supply Ability: 3000pcs/Day
Kontakt
Szczegółowy opis produktu
Product Name: Constant Current LED Driver Input Frequency Range: 47~60Hz
Output Dc Voltage: 20~36V Output Rated Current: 3200mA
Output Rated Power: 100W Protections: Short circuit/OLP/OVP
High Light:

constant current Source led driver

,

constant current led drivers

100W 3200mA Constant Current LED Driver  with CE RohS


Features:

Universal AC input/Full range
Protections: Short circuit/OLP/OVP
Meet EMC standards
100% full load burn-in test
High efficiency,long life and high reliability
IP67 design for indoor and outdoor


100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver

Specifications:


ModelHF-100-36-20-3A00
OutputDc Voltage20~36V±5%
Rated Current3200mA
Rated Power100W
Ripple&Noise(Max)200mV
Current Tolerance±20mA
Setup,Rise Time100ms/220VAC
Hold Up Time(Typ.)
InputVoltage Range170~250VAC
Frequency Range47~60Hz
Power Factor(Typ)PF>0.6/220VAC
Efficiency(Typ)83%
Ac Current(Typ) 0.63A/235V
Inrush Current(Typ)Cold-start current 3.2A/235V
ProtectionShort CircuitProtection type:recovers automatically after fault conditions is removed
OverlaodOverload protection@145~160%above peak rating
Over Temperatureprotection typer:shut down o/p voltage.re-power on to recover
EnvironmentWorking Temp-30~ +60℃(Refer to output load derating curve)
Working Humidity20~90%RH no-condensing (Waterproof)
Storage Temp Humidity-40~ +80℃,10~90%RH
Safety&EMCSafety StandardsCE Mark(LVD),IP67
Withstand VoltageI/P-O/P:1.5KVAC   IP-GND:1.5KVAC
Emc Test StandardsEN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005
EN 61347-1:2008 EN 61347-2-13:2006
NOTE1.All parameters NOT specially mentioned are measured at 220VAC input,rated laod and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a12''twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.



Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
