TUF 2000P Portable Ultrasonic Flow Meter Wall Mounted Ultrasonic Flow Meter

TUF 2000P Portable Ultrasonic Flow Meter Wall Mounted Ultrasonic Flow Meter

    • TUF 2000P Portable Ultrasonic Flow Meter Wall Mounted  Ultrasonic Flow Meter
    • TUF 2000P Portable Ultrasonic Flow Meter Wall Mounted  Ultrasonic Flow Meter
    • TUF 2000P Portable Ultrasonic Flow Meter Wall Mounted  Ultrasonic Flow Meter
    • TUF 2000P Portable Ultrasonic Flow Meter Wall Mounted  Ultrasonic Flow Meter
  • TUF 2000P Portable Ultrasonic Flow Meter Wall Mounted  Ultrasonic Flow Meter

    Szczegóły Produktu:

    Place of Origin: China Shandong
    Nazwa handlowa: China Coal
    Orzecznictwo: ISO CE SGS TUV BV MA
    Model Number: TUF 2000P

    Zapłata:

    Minimum Order Quantity: 1
    Cena: negotiation
    Packaging Details: Standard Export Packaging
    Delivery Time: Shipped in three days after payment
    Payment Terms: TT, Paypal, Western Union
    Supply Ability: 5000
    Skontaktuj się teraz
    Szczegółowy opis produktu
    Model: TUF 2000P Accuracy: ±1%
    Repeat ability: 0.2% Linearity: 0.5%
    Flow Range: ±320m/s Liquid Types: Any single uniform liquid which can transmit ultrasonic
    Security: Setup values Modification Lockout. Access code needs unlocking Units: English (U.S.) or metric
    Totalizer: 7-digit totalizer for net, positive and negative flow respectively Display: 4×16 letters
    Communication: RS-232 interface. 75-57600bps, compatible with Fuji ultrasonic flow meter and other UFM on enquiry

    TUF 2000P portable ultrasonic flow meter

     TUF series ultrasonic flow meter  /    TUF portable flow meter   wall /installed ultrasonic flow meter    /



    Detailed Product Description

    TUF-2000P Ultrasonic Flow Meter Introduction

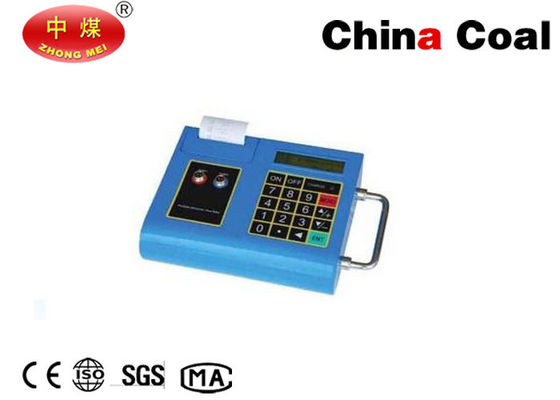

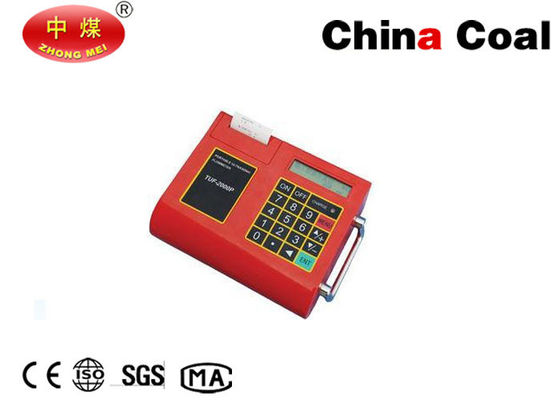

    TUF-2000P series portable Ultrasonic Flow meter



    Medium: water,saline water, industrial waste water, acid/ alkaline solution, oils.



    High Accuracy measuring



    Accuracy: ±1%, linearity: 0.5%, repeatability: 0.2%



    Non-intrusive measuring



    Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.



    Wide measuring range



    Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm



    Light weight



    Size: 225×180×67mm



    Large capacity battery



    Built-in rechargeable Ni-MH battery, provide over 12 hours of continuous operation



    Large LCD display



    Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.



    Built-in data logger



    Built-in 24K data logger, store over 2000 lines measuring data

    TUF-2000P Ultrasonic Flow Meter Parameter

    TUF 2000P Portable Ultrasonic Flow Meter Wall Mounted Ultrasonic Flow Meter

    Linearity

    0.50%

    Repeatability

    0.20%

    Accuracy

    Better than ±1% for velocity above 0.2m/s

    Response Time

    0-999 second, user-configurable

    Flow Range

    ±320m/s

    Measuring Pipe Size

    15mm-6000mm

    Units:

    English (U.S.) or metric

    Totalizer

    7-digit totalizer for net, positive and negative flow respectively

    Liquid Types:

    Any single uniform liquid which can transmit ultrasonic

    Security

    Setup values Modification Lockout. Access code needs unlocking

    Display

    Display 4×16 character

    Communication Interface

    RS-232 interface. 75-600bps, compatible with

    Fuji ultrasonic flow meter and other UFM on enquiry.

    Transducers

    Model M1 for standard, other 4 models for optional

    Transducer Cable

    Standard 5m x2 or can be extended to 10m x2

    Power Supply

    3 AAA built-in Ni-MH batteries (for over 12 hours of operation).

     100V-240VAC adapter

    Data Logger

    Built-in data logger can store over 2000 lines of data

    Manual Totalizer

    7 digit, calibrating by key

    Housing Material

    Flaming retarding ABS

    Size

    210×90×30mm

    Handset Weight

    500g(1.2 lbs) with batteries

    Feature Photo
      TUF 2000P Portable Ultrasonic Flow Meter Wall Mounted  Ultrasonic Flow MeterTUF 2000P Portable Ultrasonic Flow Meter Wall Mounted  Ultrasonic Flow MeterTUF 2000P Portable Ultrasonic Flow Meter Wall Mounted  Ultrasonic Flow Meter
