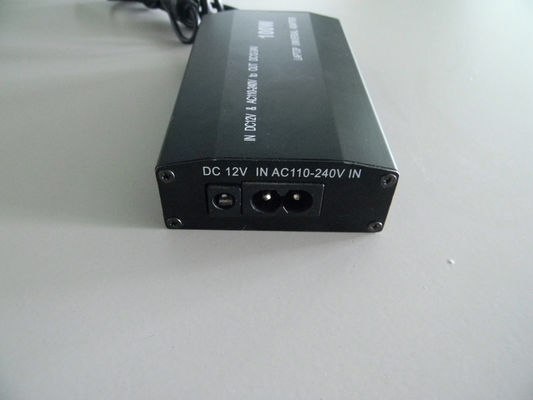

DC 12V Metal Case Universal Laptop Power Adapter 100W for Acer / Toshiba

DC 12V Metal Case Universal Laptop Power Adapter 100W for Acer / Toshiba

  • DC 12V Metal Case Universal Laptop Power Adapter 100W for Acer / Toshiba
  • DC 12V Metal Case Universal Laptop Power Adapter 100W for Acer / Toshiba
DC 12V Metal Case Universal Laptop Power Adapter 100W for Acer / Toshiba
Szczegóły Produktu:
Place of Origin: Shenzhen,China
Nazwa handlowa: RAYTOP
Orzecznictwo: CE, RoHS, FCC, UL
Model Number: RT-ULA-100W2-03S
Zapłata:
Minimum Order Quantity: 100 PCS
Cena: Negotiable
Packaging Details: Gift box or blister package,20 pcs per carton, customer package available.
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 30000 Pcs monthly.
Kontakt
Szczegółowy opis produktu
Product Name: 100W Universal Laptop Combo Charger DC Input: 11-14V
AC Input: AC100-240V, 50/60Hz, 1.8A Output: 12/15/16/18/19/20/22/24VDC
USB Output: 5V 800mA AC Plug: EU, UK, US, SAA, CCC
Enclosure: Metal Power: 100W
Application: Acer,Asus, Toshiba,Sony, Lenovo,Delta, HP, IBM, Gateway, Liteon Protections: SCP, OVP, OCP, OTP
High Light:

universal notebook power adapter

,

universal laptop power supply

DC 12V Metal Case Universal Laptop Power Adapter 100W for Acer / Toshiba





Specs:



Input: AC100-240V, 1.8A max.

Output: DC15/16/18/19/20/22/24V

Power Cord:

AC Cable: 2x0.75mm2, or 3x0.75mm2 length: 1.2M

DC Cable: 18AWG, Copper, length: 1.2M

AC Plug: EU, UK, US, SAA, CCC





Features:



- Worldwide input voltage 100~240Vac;

- High efficiency, up to 82%;

- Exclusive model, attractive appearance.

- Protection: Short circuit protection, over voltage protection, over current protection.

- 10 different output connectors for top brands laptops.

- MTBF: 50,000 hours.





Approval: CE, RoHS, FCC

Warranty: 2 years

Contents: 1Adapter + 1AC Cable+1DC Cable +10 Connectors



Applications:



External power supply, used to charge most top brand laptops/notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. It can also charge personal devices like smart phones, portable DVD, PDA, MP3,MP4 and so on simultaneously when using your laptops.



Description:



This is an universal laptop AC Adapter come with unique design and 10 exchangeable tips, have great compatibility with most top brand notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. The users can adjust the slider on the side of the adapter to get different output voltage 15/16/18/19/20/22/24V. The adapter has compact design and high efficiency, very easy to carry and can charge your laptops quickly on going.

Note: please select correct output voltage before connecting the adapter with your laptops.



Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

1.8A

Inrush Current

30A

Output

Rated Output Voltage

DC 12~24V

Output Voltage

DC15/16/18/19/20/22/24V

Rated Output Current

4.5A

Rated Power

90W

Ripple and Noise

120mV p-p

Standby Power Consumption

0.5W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 4 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC, UL, SAA

Warranty

2 Years





Competitive Advantage:



- Open private model w/o extra cost for you;

- 0.3% free backup of order quantity;

- Direct factory price without middle man.

- High performance-to-price ratio;

- Perfect after-sales service
