Gaoxin Industrial Park, Guangming New Zone, Shenzhen w prowincji Guangdong, Chiny | Angelwang66@126.com |
Place of Origin: | China |
Nazwa handlowa: | Champion |
Orzecznictwo: | CE ; UL |
Model Number: | 6FM100H |
Minimum Order Quantity: | 50 pcs |
---|---|
Cena: | negotiation |
Packaging Details: | Carton box |
Delivery Time: | 25 days |
Payment Terms: | 30% in advance, T/T |
Supply Ability: | 500,000 pieces per month |
Model Name: | 6FM100H | Size: | 330*171*214 mm |
---|---|---|---|
Voltage: | 12V | Terminal: | M8 |
Capacity: | 100AH | Color: | Black |
Weight: | 30 kg | Application: | Inverter,UPS,Solar,Off grid power,On grid power |
High Light: | charging lead acid battery,valve regulated lead acid battery |

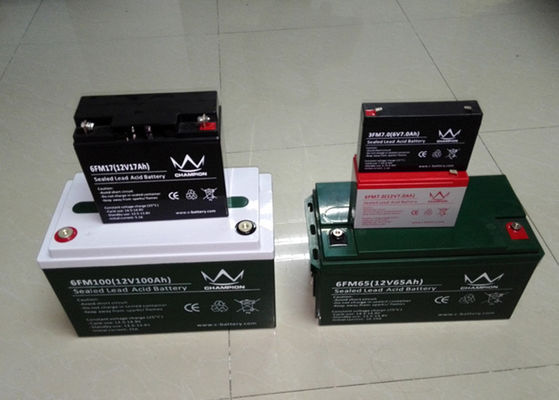

High power and high rate discharge lead acid battery 12v 100ah solar and UPS use
Description:
Champion high rate discharge batteries :
1. Excellent safety performance: No electrolyte leakage, battery swelling and cracking under normal use;
2. High shock-proof performance: The fully charged and completely fixed battery, with 4mm amplitude and 16.7HZ frequency do have a normal open circuit voltage without leakage, batteries swelling or cracking problem after one-hour vibration;
3. High discharging performance: With smooth discharging voltage and mild discharging platform;
4. High resistance to overdischarge: In temperature of 25 degrees Celsius, the fully charged battery discharges with fixed resistance which is equivalent to the one required by 1 CA discharge of the battery for three weeks, and it can restore capacity over 75%;
5. High impact-proof performance: The fully charged battery is proved to maintian normal open circuit voltage and be without leakage or batteries swelling or cracking after droping three times from 20cm height naturally to a 1 cm-thick hardwood board;
6. High resistance to high current: The fully charged battery is proved to be without conductive part melted or any appearance deformation after discharging at 2 CA for 5 minutes or 10 CA for 5 seconds;
7. High resistance to overcharge: The fully charged battery is proved to maintian normal open circuit voltage and be without leakage or batteries swelling or cracking in temperature of 25 degrees Celsius after chargeing at 0.1 CA for 48 hours, and the capacity maintian over 95%.
Applications:
Data Centre (High Rate UPS)
Telecommunication
Banks & Financial Centre
on grid power and off grid power
Power Generation Plants
Emergency Lighting
Emergency Power Supply
High Power Backup Supply
LED Light
VAN
Wheel chairs
Security system"Alarm system" "CCTV"
"Video" Camera""Loudspeaker"
Marine
Wheel Chair
Specifications:
Model |
Nominal |
15 min. Rate |
Capacity |
Dimensions(mm) |
Terminal |
Weight |
|||
Voltage |
(Watts/cell) |
(AH) |
Length |
Width |
Height |
Total Height |
±3%(Kg) |
||
(V) |
|
|
mm |
mm |
mm |
mm |
Type |
Kg |
|
6FM12H |
12 |
51 |
12 |
151 |
98 |
95 |
101 |
T2 |
3.65 |
6FM18H |
12 |
76 |
18 |
181 |
77 |
167 |
167/167 |
T3/T8 |
5.30 |
6FM20H |
12 |
82 |
20 |
181 |
77 |
166 |
166 |
T8 |
5.75 |
6FM24H |
12 |
100 |
24 |
166 |
175 |
125 |
125/125 |
T3/T8 |
7.8 |
6FM28H |
12 |
110 |
28 |
165 |
125 |
175 |
182/175 |
T6/T8 |
8.6 |
6FM33H |
12 |
125 |
33 |
195 |
130 |
155 |
180/166 |
T7/T9 |
10 |
6FM45H |
12 |
160 |
45 |
197 |
165 |
170 |
170/170 |
T4/T9 |
14 |
6FM65H |
12 |
240 |
65 |
350 |
167 |
179 |
186/179 |
T5/T9 |
21.5 |
6FM70H |
12 |
250 |
70 |
260 |
168 |
211 |
233/214 |
T5/T9 |
22 |
6FM75H |
12 |
282 |
75 |
23 |
|||||
6FM80H |
12 |
290 |
80 |
24 |
|||||
6FM90H |
12 |
330 |
90 |
306 |
169 |
211 |
233/214 |
T5/T9 |
29 |
6FM100H |
12 |
390 |
100 |
330 |
171 |
214 |
224/220 |
T5/T9 |
30 |
6FM120H |
12 |
425 |
120 |
409 |
176 |
225 |
225/225 |
T5/T11 |
35 |
6FM134H |
12 |
475 |
134 |
342 |
172 |
280 |
285 |
T11 |
42 |
6FM140H |
12 |
500 |
140 |
43 |
|||||
6FM150H |
12 |
535 |
150 |
485 |
172 |
240 |
242/240 |
T5/T11 |
45 |
6FM200H |
12 |
710 |
200 |
522 |
238 |
218 |
238/221 |
T5/T11 |
61 |
3FM200H |
6 |
710 |
200 |
321 |
176 |
226 |
246/229 |
T5/T11 |
32 |
Competitive Advantage:
