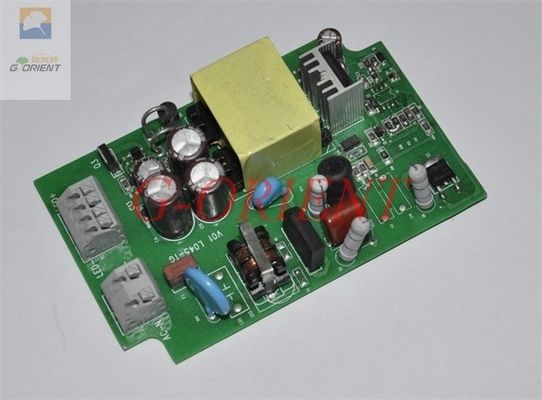

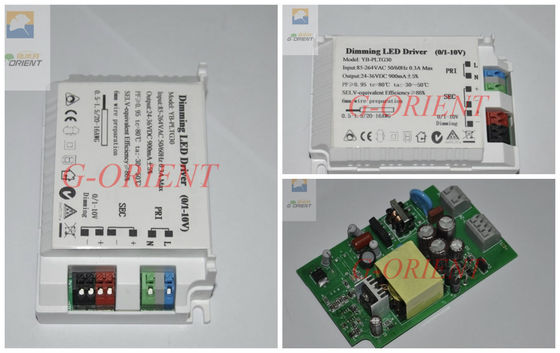

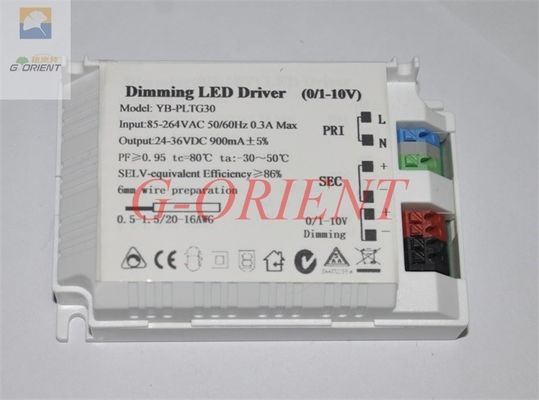

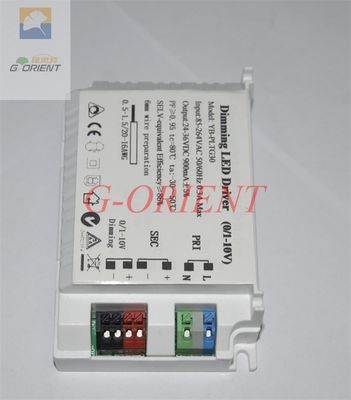

Universal 600ma 0-10V PWM Dimmable constant current led driver power supply

Universal 600ma 0-10V PWM Dimmable constant current led driver power supply

    • Universal 600ma 0-10V PWM Dimmable constant current led driver power supply
    • Universal 600ma 0-10V PWM Dimmable constant current led driver power supply
    • Universal 600ma 0-10V PWM Dimmable constant current led driver power supply
    • Universal 600ma 0-10V PWM Dimmable constant current led driver power supply
  • Universal 600ma 0-10V PWM Dimmable constant current led driver power supply

    Szczegóły Produktu:

    Place of Origin: CHINA
    Nazwa handlowa: G-ORIENT
    Orzecznictwo: CE, ROHS, FCC, SAA, TUV, etc.,
    Model Number: GDP18-E

    Zapłata:

    Minimum Order Quantity: 100pcs
    Cena: Negotiable
    Packaging Details: 96pcs/CTN, GW:6KGS, Carton Size: 48x28x25 cm
    Delivery Time: 3-15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200,000PCS/Mon
    Skontaktuj się teraz
    Szczegółowy opis produktu
    Input Voltage: AC85-265V Output Voltage: 24-42V
    Output Current: 500-600mA Power: 18-24W
    Efficiency: 85 Warranty: 3 years
    Operation Tempature: -25 ~ +55℃

    Universal 600ma 0-10V PWM Dimmable constant current led driver power supply​





    Features:

    * 100% full load burn-in test

    * Input Voltage: AC 85-264V

    * Multiple Protections: Short circuit / Over load / Over voltage / Over temperature, Auto recovery

    * Soft start with low ripple

    * Leading or trailing edge dimming and universal dimming, 0/1-10V interface to be compatible with large-scale dimming system

    * Output: Constant current

    * Fit for class I protection lighting fixture

    * Compliant with international standards, like safety, EMI, anti-interference, etc.,

    * Compatible for most dimmers in the market, like Lutron, Philips, Sanken, etc.,





    Applications:

    * LED Panel, Down Light, Ceiling Light, Flood Light, etc.,

    * Suitable for commecial and residential LED lamps





    Specifications:

    18-24W External constant current 0-10V LED dimmable Power Supply

     OUTPUT

    Voltage

     24-42VDC

    Current Range

     500-600ma

    Current Accuracy

     5%

    Rated Power Range

     18-24W

    Efficiency(Full Loaded)

    ≥0.85

    Current Ripple

    ≤520mAp-p

     INPUT

    Voltage Range

     100-120/200-240VAC

    Frequency Range

     47-62Hz

    Power Factor

    ≥0.95

    Inrush Current

    10A MAX(230VAC)

    Leakage Current

    ≤0.5mA

    Protection

    Over load/Over Voltage/Over Temperature/Short Circuit Protection

    150% Rated output power, OTP≥120±5℃,

     Environment

    Working Temp.

     -25 ~ +55℃

    Working Humidity

     20 ~ 90% RH, non-condensing

    Storage Temp., Humidity

     -40 ~ +50℃, 5 ~ 95% RH

    Temp. Coefficient

     +/-0.03%/℃ (0 ~ 50℃)

    Feature

    Dimension

     103*67*31 (L*W*H)

    Weight

    39g

    Others



    Voltage Resistance

    IP-OP: 3Kvac/5Ma/1 min

    Conformance with Regulation

    EN55015, EN610003-2Classic, EN610003-3





    Competitive Advantages:

    * PFC>0.95

    * High efficiency up to 85%

    * Wide-range Dimming: 5-100%

    * Flicker free, No Flash

    * 3 years warranty

    * CE / ROHS / FCC/SAA approval, Tuv, etc.,

    * Customized is available







    Company Advantage:

    * Professional R&D team

    * High quality products

    * Short production lead time: 7-15 working days

    * Standardized production process

    * 10 years in LED lighting and power supply manufacture





    The Dimmer Wiring Diagram

    Universal 600ma 0-10V PWM Dimmable constant current led driver power supply
