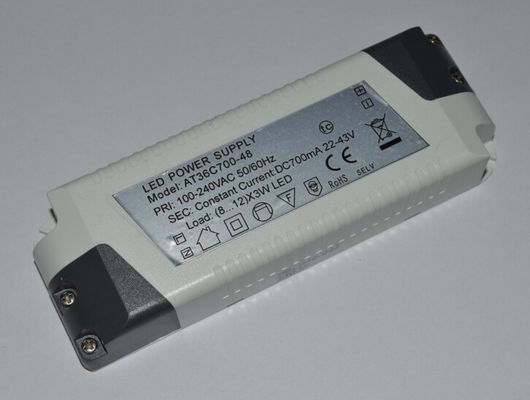

Constant Current 300Ma / 350Ma / 900Ma External Led Driver 36W AC 100V

Constant Current 300Ma / 350Ma / 900Ma External Led Driver 36W AC 100V

  • Constant Current 300Ma / 350Ma / 900Ma External Led Driver 36W AC 100V
Constant Current 300Ma / 350Ma / 900Ma External Led Driver 36W AC 100V
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: STARWELL
Orzecznictwo: UL,CE,ROHS, FCC,GS,SAA,C-TICK
Model Number: AT36C700-48
Zapłata:
Minimum Order Quantity: 1
Cena: negotiation
Packaging Details: Carton box
Delivery Time: 10-15 days
Payment Terms: Ex works
Supply Ability: 1, 000, 000PCS/week
Kontakt
Szczegółowy opis produktu
High Light:

Led Panel Driver

,

External led driver





Constant Current 300Ma / 350Ma / 900Ma External Led Driver 36W AC 100V





Short Features :



> Type : Constant Current Led Driver

> input voltage range : 100~240VAC

> Output type : constant current

> output :  300Ma / 350Ma / 500Ma / 600Ma / 700Ma / 900Ma 36W

> Effiency : 85% minimum

> PF : >0.95

> Ripple and Noise : 100mV maximum

> Net Weight : 250g

> Dimension : 132(H)*45(W)*24(H)mm

> Safety protection : over load, over voltage, short ciruict, open load protection.

> Certificate : UL,CE,FCC,GS, SAA,C-TICK,CB,KC certificates.

> Application : Led down light , led panel , led strip light , etc......





Specifications



Input Rated Voltage :

100Vac~240Vac

Input Frequency Range:

47Hz~63Hz

Input Inrush Current :

1.8A max

Efficiency  :

85%(MIN)at Rated Voltage

Output:

  300Ma / 350Ma / 500Ma / 600Ma / 700Ma / 900Ma

Output power :

36W

Ripple and Noise :

<150Mv at full road with 20MHz bandwidth

Turn On Delay Time:

<3S  (AC:110V and full load)

Safety protection :

over voltage and current protection.

Leakage Current:

<5mA

Output typer:

Constant current

Operating Temperature:

0°C----+60°C

Storage Temperature:

-20°C----+85°C

Certificate:

CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK

Safety Standard :

EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006

Application:

For led light, led strip, led down light etc….



MODEL LIST:



CONSTANT CURRENT LED DRIVER

Model

Input Voltage

Output Power

Output Voltage

Output Current

Power Factor

appication

Dimension
(mm)

SW-AT1C350-45

100-240V

1W

2.5V-5V

350mA±5%

0.95

1*1W

68*33*22

SW-AT3C700-45

3W

2.5V-5V

700mA±5%

1*3W

SW-AT3C350-45

100-240V

3W

5V-11V

350mA±5%

0.95

2-3*1W

68*33*22

SW-AT6C500-45

6W

5V-11V

500mA±5%

2-3*2W

SW-AT9C700-45

100-240V

9W

5V-11V

700mA±5%

0.95

2*3*3W

68*33*22

SW-AT7C350-45

7W

11-25V

350mA±5%

4-7*1W

SW-AT9C350-46

100-240V

9W

24V-33V

350mA±5%

0.95

8-10*1W

88*38*22

SW-AT9C700-46

12Vmax

700mA±5%

4*3W

SW-AT12C350-46

100-240V

12W

24-44V

350mA±5%

0.95

8-13*1W

88*38*22

SW-AT12C700-46

8V-14V

700mA±5%

3*4*3W

SW-AT15C350-47

100-240V

15W

36-54V

350mA±5%

0.95

10-16*1W

110*42*24

SW-AT15C700-47

12-18V

700mA±5%

4-5*3W

SW-AT18C350-47

100-240V

18W

36V-64V

350mA±5%

0.95

12-18*1W

110*42*24

SW-AT18C700-47

15V-22V

700mA±5%

5-6*3W

SW-AT24C350-48

100-240V

24W

63-86V

350mA±5%

0.95

18-26*1W

132*45*24

SW-AT24C350-48

21-30V

700mA±5%

7-9*3W

SW-AT27C350-48

100-240V

27W

72-96V

350mA±5%

0.95

22-32*1W

132*45*24

SW-AT27C700-48

24-33V

700mA±5%

8-10*3w

SW-AT30C350-48

100-240V

30W

105Vmax

350mA±5%

0.95

25-30*1W

132*45*24

SW-AT30C700-48

36V max

700mA±5%

10*3W

SW-AT50C1500-49

100-240V

50W

36Vmax

1500mA±5%

0.95

high power led

157*57*36

SW-AT50C700-49

70Vmax

700mA±5%

SW-AT50C1000-49

100-240V

50W

50Vmax

1000mA±5%

0.95

high power led

157*57*36

SW-AT60C1800-49

60W

36Vmax

1800mA±5%





Applications :



For led light, led strip, led down light etc….





INSTRUCTION :



- For indoor application

- The mains plug is used as the disconnect device, the disconnect device shall be readily operable.

- The socket-outlet shall be installed near the equipment and shall be easily accessible.

- No naked flame source, such as lighted candles, should be placed on the apparatus.

- Maximum operating ambient for the equipment is 40℃.

- The apparatus should not be used in a confined space such as a bookcase.

- This appliance is not intended for use by persons (including children) with reduced physical,

   sensory, or mental capacities, or lack of experience and knowledge, unless they have been given

   supervision or instruction concerning use of the appliance by a person responsible for their Safety.

- Children should be supervised to ensure that they do not play with the appliance.



Package information :

1. carton box dimension: 480*450*180mm
2. QTY: 50 pcs/carton
3. G.W: 11.5 KG
