Place of Origin: | China |
Nazwa handlowa: | DongDaHua |
Orzecznictwo: | CE,RoHS |

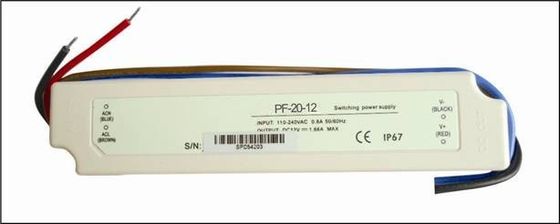

Model Number: | PF-20-12 |
Minimum Order Quantity: | 10 |
---|---|
Cena: | / |
Packaging Details: | as for your requirement |
Delivery Time: | as per your order quantity |
Payment Terms: | TT,paypal |
Supply Ability: | 4000pcs/Day |
Product Name: | Constant Voltage LED Driver | DC output power: | 20W |
---|---|---|---|
Input voltage range: | 110-240V AC | Waterproof grade: | IP67 |
Input frequency range: | 47Hz~63Hz | DC output voltage: | 12V 24V |
High Light: | waterproof led driver,constant voltage led drivers |
High Brightness 12V Constant Voltage LED Driver 20W Waterproof
Quick detail:
Power: 20W
Input: AC110-264V
Output: DC 12V 24V
Size: 107*50*25
Certificate: CE&ROHS
Warranty: 2 years
Description:
1. Protections :Short circuit/Overload/Over temperature
2. Cooling by free air convection
3. IP67 design for indoor or outdoor installations
4. 100% full load burn-in test
5. Suitable for LED lighting
6. Products through CE& ROHS certification
7. Two years warranty
Descriptions:
Parameter |
Model: PF-20 |
|
DC output voltage |
12V±5% |
24V±5% |
Rated output current |
1.66A |
0.83A |
Output current range |
0-1.66A |
0-0.83A |
Ripple and Noise |
120mVp-p |
|
DC output power |
20W |
202 |
Efficiency |
85% |
85% |
Input voltage range |
110-240V AC |
|
Short-circuit protection |
Damage free short-circuit protection 3 times or more with automatic restoration |
|
Overload protection |
105-150% hiccup with automatic restoration |
|
Temp.coefficient |
±0.03%℃ ( 0-40℃ ) |
|
Voltage tolerance |
Input-output range: 1.5KvAC |
|
Working environmental temp. |
-10℃~+40℃ |
|
Waterproof grade |
IP67 |
|
Input frequency range |
47Hz~63Hz |
|
Storage temperature |
-20℃~+85℃ |
|
Dimension |
139*30*22mm |
|
weight |
0.16 kg |
Features:
* constant voltage design
* Universal AC input/Full range
* Withstand 300VAC surge input for 5 seconds
* Protections:Short circuit/Overload/Over voltage
* Cooling by free air convection
* Small and compact size
* Fully encapsulated with IP67 level(Note.7)
* Fully isolated plastic case
* Suitable for LED lighting and moving sign applications
* 100% full load burn-in test
* Low cost,high reliability
* 2 years warranty
Brightness 12V 24V 20W Constant Voltage LED Driver / Waterproof 12v LED Driver
Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
Quality assurance:
Delivery:
