Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface

Szczegóły Produktu:

Place of Origin:	CN
Nazwa handlowa:	stone
Orzecznictwo:	CE Certificate ,FCC Certificate,RoHS Certificate ,ISO9001:2008
Model Number:	STA151WT-01

Zapłata:

Minimum Order Quantity:	2kg
Packaging Details:	box/carton
Delivery Time:	5-15days
Payment Terms:	T/T, Western Union,Paypal

Kontakt

Szczegółowy opis produktu

display scale:	4:3	Size (Inch):	15.1 inch
Resolution:	1024*768	VOLTAGE:	DC5.0V ~ 20V
brightness:	500 cd/m²	interface:	RS232/RS485/TTL
High Light:	industrial lcd display , rs232 lcd display

Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface

Product Description
1. Controlled by Any MCU via simple "Command Sets"
2. Used as Touch-screeen controller & TFT-LCD display system
3. 3 easy software to help you run our product.

Working Principle
The TFT-LCD Module communicates with the main controller via the command, then the main controller would control the machine to work after receiving the commands.

Please note: The Main controller can be designed by engineer with Any MCU.

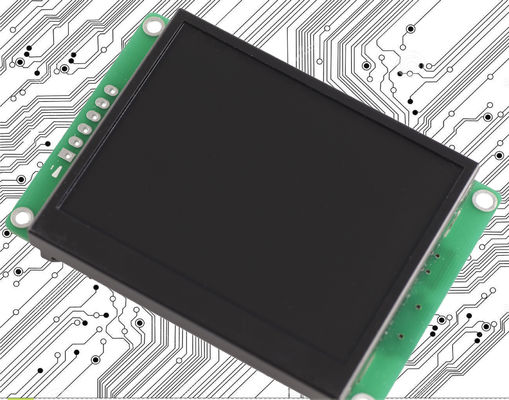

Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface 0

Software Description

1. Design a group of Beautiful "Graphical User Interface" that you need.

2. Connect your equipment with our TFT-LCD Module by RS232, RS485 port or TTL Logic directly, plug

and play.

3. Write a simple program for the MCU to control the TFT-LCD Module via powerful "Command Sets"

(HEX Code).

That's all. Saving much development Time and Cost for Engineer.

For example: Image Command 0x70.

Send: “0xAA+0x70+ Pic_ID + 0xCC 0x33 0xC3 0x3C”

	Introduction	Example	Note
AA	Frame head		Frame head of one Command
0x70	Command Code
Pic_ID	Sequence number of the current picture	0x00 0x01	Show Picture - 01
CC 33 C3 3C	Frame end		Frame end of one Command

We would offer a simple Toolbox to help you to work with TFT-LCD Module on PC.

1. Assistant function: show how to send the Command Set to control the TFT display.

2. Download function: Download the images and configuration files into TFT Module

3. Touch Control function: Define many buttons on the User Interface, then create a touch configuration

file.

4. Font software: Create the font configuration file.

Product Parameter

Model: STA151WT-01 (Advanced Type)

Physical Parameter
Model	STA151WT-01
Size (Inch)	15.1"
Resolution	1024×RGB×768
Pixel Spacing	0.1905 mm × 0.0635 mm(H×V)
Color	65536 colors (16 bit)
Viewing Area	304.1 mm × 228.1 mm
Overall Dimension	384.5 mm × 255.9 mm × 26 mm(N)/ 28.3 mm(T)
Net Weight	1255 g(N)/ 1635 g(T)
TFT Panel	A+ Level Industry Panel
Touch Screen	Industry Level 4 wire resistance Or without touch screen is optional.
Backlight Parameter
Backlight Type	LED
Brightness	500 cd/m2 (Brightness can be adjustable in 100 levels.)
Contrast	500:1
Backlight life	50,000 hours
Viewing Angle	80°/ 80°/ 80°/ 80° (L/R/U/D)
Working Temperature	-20°C ~ +70°C
Working Humidity	55°C, 85%
Storage Temperature	-30°C ~ +80°C
Screen Mode	Digital
Performance Parameter
CPU	CortexM3 STM32F103
LCD Controller	CPLD EPM240
Refresh Rate	60Hz
Picture Switching Speed	80 ms/picture (12 pictures/s)
Flash Memory	Standard 256m, Extension 2GB
Memory Amount for picture	151 images
Interface	RS232/ RS485/ TTL UART Interface
Pictures downloading	MiniUSB2.0 (12Mbps) & SD card
Voltage Range	DC5.0V ~ 20V (typical value: 12V)
Power	12W
Test Report
MTBF	4,250,000H
Working Temperature	-20°C ~ +70°C
Air Humidity	60°C, 90%
Continuous Vibration Testing	10-55Hz, 1.5mm, 10G
Impact Acceleration Testing	6ms, 100G
ESD Testing	10KV
Radiation Reliability Testing	44W

Advantages

With CPU & Driving Device

Controlled by Any MCU

Display Picture/ Text/ Curve via Commands

65536 colour TFT display

Touch Screen

RS232/ RS485/ TTL UART Interface & USB port

Wide voltage range

Widely Used in many various Industrial Field

Easy to Use! Powerful Function! Saving Cost and Time!

Used as Touch-controller, TFT-LCD display system, etc.

Easy!!! Powerful!!! Saving!!!

The Intelligent TFT-LCD Module can be controlled by Any MCU through our Powerful & Easy Command

Set (HEX Code), So

many of engineer in more than 50 countries enjoy our Product for new project.

Main Size of TFT LCD Module

Size	Resolution
3.5"	320*240
4.3"	480*272
5"	640480; 480272; 800*480
5.6"	640*480
5.7"	640*480
7"	800480; 800600; 1024*600
8"	800600; 800480; 1024*768
8.4"	800*600
10.1"	1024*600
10.4"	800*600
12.1"	800*600
15.1"	1024*768
