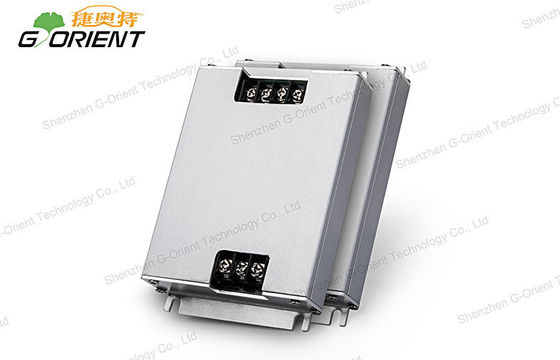

Aluminium Case Variable Switching Power Supply 100W with Thickness 18mm
Applications:
This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.
Competitive Advantage:
* CE / ROHS / FCC approval
* Output over-current,short-circuit,over-load,over-voltage protection
* Ultra-thin 18mm
* The two level output over voltage protection
* High efficiency up to 94%
* Low output ripple and noise
Specifications:
|
Switching power supply
|
NHD100-5-A
|
|
OUTPUT
|
DC Voltage
|
5V
|
|
Current Range
|
0~20A
|
|
Rated Current
|
20A
|
|
Rated Power
|
100W
|
|
Ripple & Noise(max.)
|
<100mVp-p
|
|
Voltage set point accuracy
|
+/- 3.0%Vo max
|
|
Over-current protection
|
>120%io,hiccup
|
|
Line Regulation
|
0.2%Vo max
|
|
Load Regulation
|
0.2%Vo max
|
|
Short-circuit protection
|
Hiccup
|
|
Hold up time
|
>8mS
|
|
Overshoot and undershoot
|
< +/- 5.0%
|
|
INPUT
|
Voltage Range
|
DC9-36V
|
|
Frequency Range
|
BW=20MHz
|
|
Efficiency(Typ.)
|
94%
|
|
DC Current
|
<2.9A
|
|
Inrush Current(Typ.)
|
100A at DC Cold start
|
|
Leakage Current
|
Input-Output< 0.2mA ; Input-PG:<0.3mA
|
|
Environment
|
MIBF
|
>2 million hrs
|
|
Temp.Coefficient
|
< 0.02%/℃
|
|
Storage Temperature range
|
-55 ~ +115℃
|
|
Operaing board Temperature range
|
-30 ~ +75℃
|
|
Safety
|
Safety standards
|
CE
|
|
Withstand Voltage
|
DC40V
|
Features:
* Input reverse connect protection
* High efficiency 94% & small size
* To prevent car screen flower screen, the splash screen and two horizontal line design
* Low output ripple and noise
* 2 years warranty
* Aluminum metal shell,natural cooling
* Through the EMC certification
Company Advantage:
1. Protection of your sales area,ideas of design and all your private information
2. Your inquiry related to our products or price will be replied in 24hrs
3. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
4. OEM&ODM,any your customized lightings we can help you to design and put into product
5. Distributorship are offered for your unique design and some our current models
