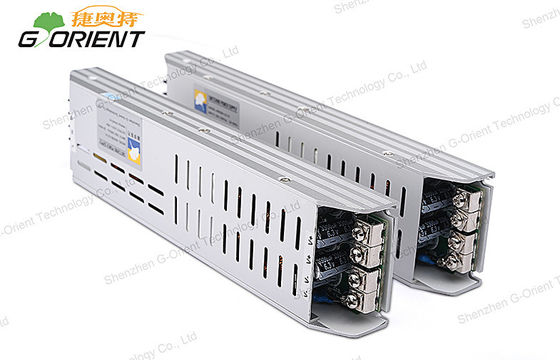

High PFC Industrial Power Supply 200W 5V / 40A with CE RoHS Approved

High PFC Industrial Power Supply 200W 5V / 40A with CE RoHS Approved

  • High PFC Industrial Power Supply 200W 5V / 40A with CE RoHS Approved
High PFC Industrial Power Supply 200W 5V / 40A with CE RoHS Approved
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: G-ORIENT
Orzecznictwo: ISO9001 / CE / ROHS / FCC
Model Number: NHP200-5-A
Zapłata:
Minimum Order Quantity: 10pcs
Cena: negotiable
Packaging Details: 20pcs/16Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
Kontakt
Szczegółowy opis produktu
Output: 5V DC / 40A Output power: 200W
Size: 212*58*29mm Power factor: >0.95
High efficiency: 90% Input: 100-240V AC
High Light:

5v 12v power supply

,

constant voltage power supply



High PFC Industrial Power Supply 200W 5V / 40A with CE RoHS Approved


Features:
* Synchronous rectification,high power factor>0.95
* High efficiency up to 90%
* Low output ripple and noise,high reliability
* With over-current/over-voltage/short-circuit/over-power protection
* Ultra-low start up temperature -40℃
* 2 years warranty


Company Advantage:
* Professional R&D team
* Standardized production process
* Best after sale service
* High quality products
* Short lead time
* Cheap wholesale price


Specifications:

Switching power supply

 NHP200-5-A

 OUTPUT

DC Voltage

 5V

Current Range

 0~40A

Rated Current

 40A

Rated Power

 200W

Ripple & Noise(max.)

 <200mVp-p

Regulation

 ≦+/-3%

Leakage current

 ≦3.5mA

 INPUT

Voltage Range

 100-240V AC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 90%

 Environment

Storage Temperature

 -40 ~ +85℃

Operaing Temperature

 -40 ~ +80℃

Relative Humidity

 10%-95%

Cooling

 Natural convection

 Safety

Safety standards

 CE

 Withstand Voltage

Input-output withstand vol.

 3000Vac/10mA/1min

Input-FG withstand vol.

 1500Vac/10mA/1min

Output-FG withstand vol.

 500Vac/10mA/1min

 Others

Dimension

 212*58*29mm (L*W*H)

Packing






Competitive Advantage:
* Ultra-thin 29mm
* High efficiency up to 90%
* Low output ripple and noise
* Output over-current,short-circuit,over-load,over-voltage protection
* Synchronous rectification+PFC
* Ultra-low start up temperature-40℃
* CE / ROHS / FCC approval


Applications:
* Digital and electronic products;
* Advisement player
* Electrical equipment, Instrumentation;
* Communications and security products.
* LED display,LCD TV, LED TV
* Display screen,LED video wall
